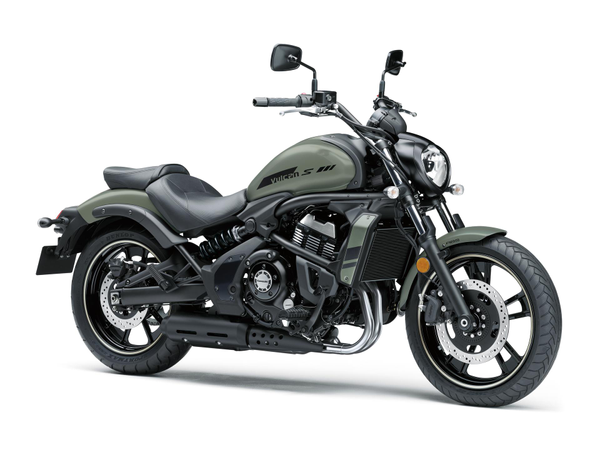

Vulcan S ei ole kindlasti mitte tavaline kruiser. Omapärane disain,rida-2 pööretemaias mootor,
unikaalne raam ja vedrustus - see kõik ondisainitud sõltumatule, iseteadlikule sõitjale,
kes eipea mitte midagi mitte kellelegi tõestama.

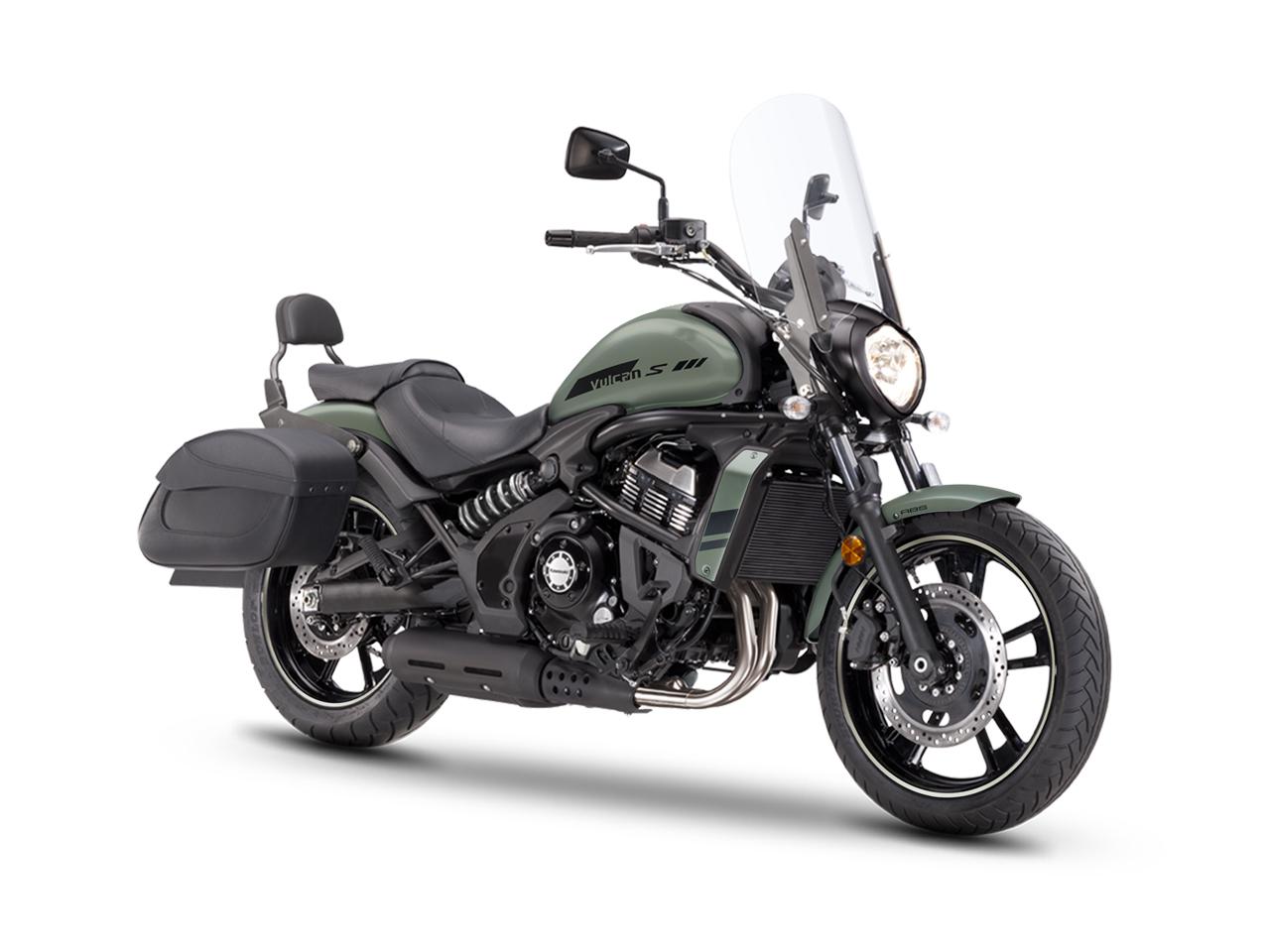

Värvid
Show all
Show less
Erimudeli lisavarustus
Show all
Show less
Inpage Navigation Section: Galerii
Inpage Navigation Section: Omadused ja spetsifikatsioonid
| Mootori tüüp | Vedelikjahutusega, 4-taktiline paralleelasetusega kahesilindriline mootor |
|---|---|
| Surveaste | 10.8:1 |
| Klapisüsteem | DOHC, 8 valves |
| Läbimõõt x käik | 83.0 x 60.0 mm |
| Kubatuur | 649 cm³ |
| Kütusesüsteem | : 38 mm x 2 |
| Õlitus | Sundõlitus, poolkuiv õlivann |
| Käivitussüsteem | Elektriline |
| Maksimaalne võimsus | 44.7 kW {61 PS} / 7,500 rpm |
|---|---|
| Maksimaalne pöördemoment | 62.4 N•m {6.4 kgf•m} / 6,600 rpm |
| CO2 emissioon | 104 g/km |
| Kütusekulu | 4.5 l/100km |
| CO2 emissioon 35 kW | 102.0 g/km |
| Kütusekulu 35 kW piiratuna | 4.4 l/100km |
| Ülekanne | 6 käiku |
| Sidur | Märg mitme kettaga |
| Esmane ülekandearv | 2.095 (88 / 42) |
| 1. käigu ülekandearv | 2.438 (39 / 16) |
| 2. käigu ülekandearv | 1.714 (36 / 21) |
| 3. käigu ülekandearv | 1.333 (32 / 24) |
| 4. käigu ülekandearv | 1.111 (30 / 27) |
| 5. käigu ülekandearv | 0.966 (28 / 29) |
| 6. käigu ülekandearv | 0.852 (23 / 27) |
| Lõppülekanne | Kinnine kett |
| Lõplik ülekandearv | 3.067 (46 / 15) |
| Raami tüüp | Rombikujuline toru, kõrge jäikusega teras |
|---|---|
| Kaugus pöördekeskmest | 120 mm |
| Amordikäik, esimene | 130 mm |
| Amordikäik, tagumine | 80 mm |
| Rehv ees | 120/70 R18 M/C 59H |
| Rehv taga | 160/60 R17 M/C 69H |
| P x L x K | 2,310 x 880 x 1,100 mm |
| Pöördenurk V/P | 35° / 35° |
| Teljevahe | 1,575 mm |
| Kõrgus maapinnast | 130 mm |
| Kütusepaagi maht | 14.0 liitrit |
| Istme kõrgus | 705 mm |
| Tühimass* | 229 kg |
| | *Curb mass includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). |
| Estimated dry weight** | 215 kg |
| | **Estimated Dry weight does not include all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). |

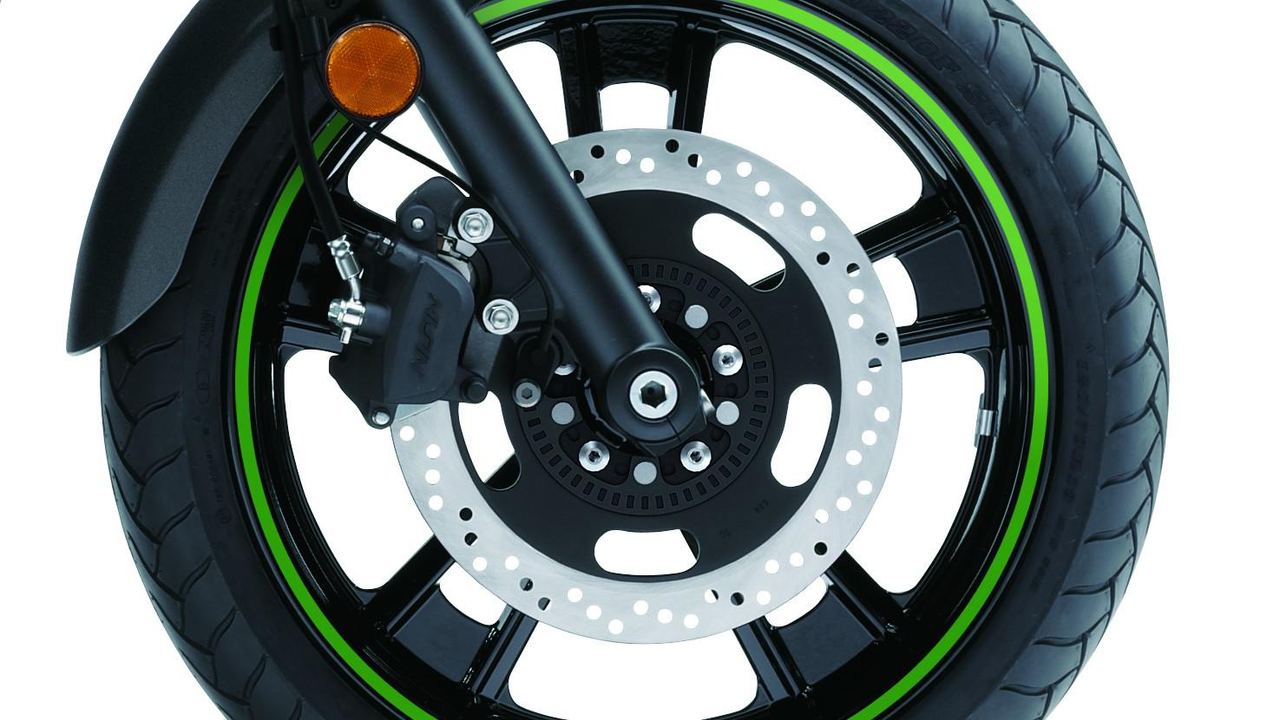

| Pidurid ees | Üksik ketas |
|---|---|
| Esipiduri läbimõõt | Ø 300 mm |
| Esimese pidurisadula tüüp | Kahekolbilised |
| Pidurid taga | Üksik ketas |
| Tagapiduri läbimõõt | Ø 250 mm |
| Tagumise pidurisadula tüüp | Ühekolbiline |
| Vedrustus ees | - |
| Esivedrustuse diameeter | Ø 41 mm |

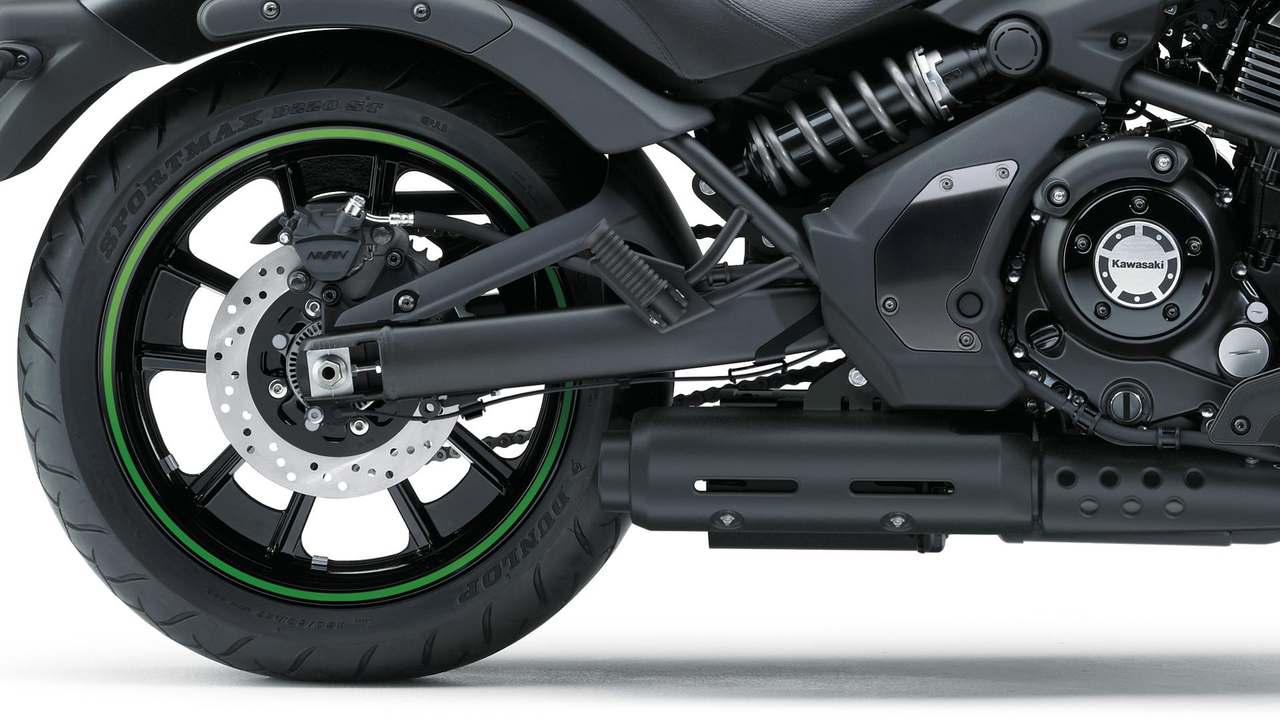

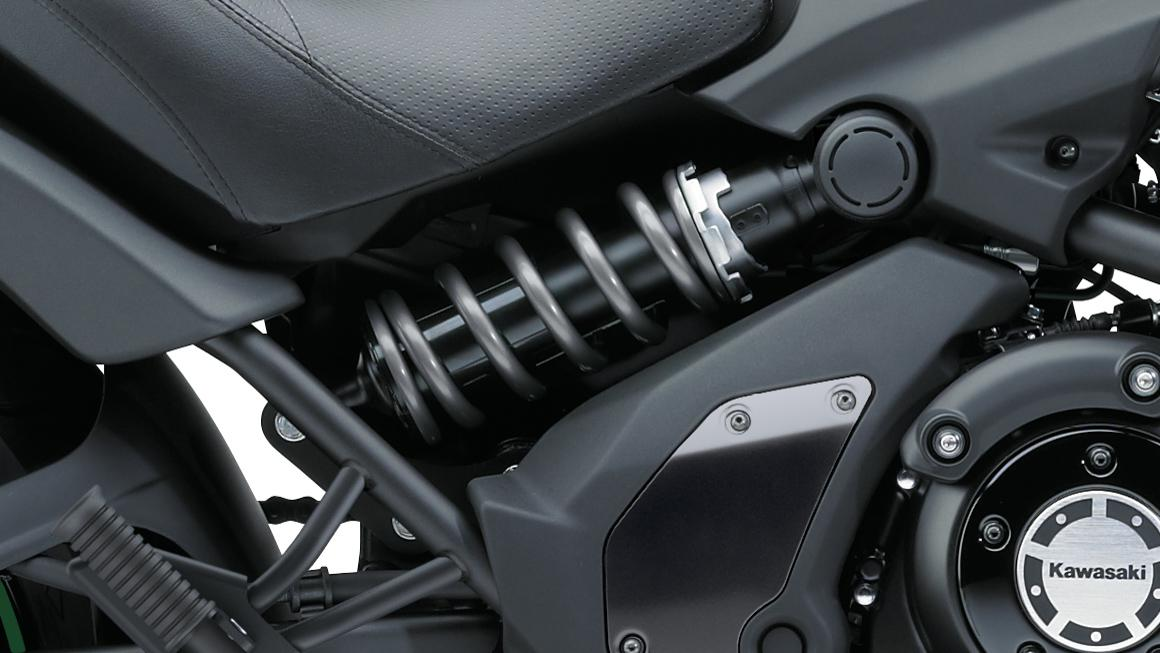

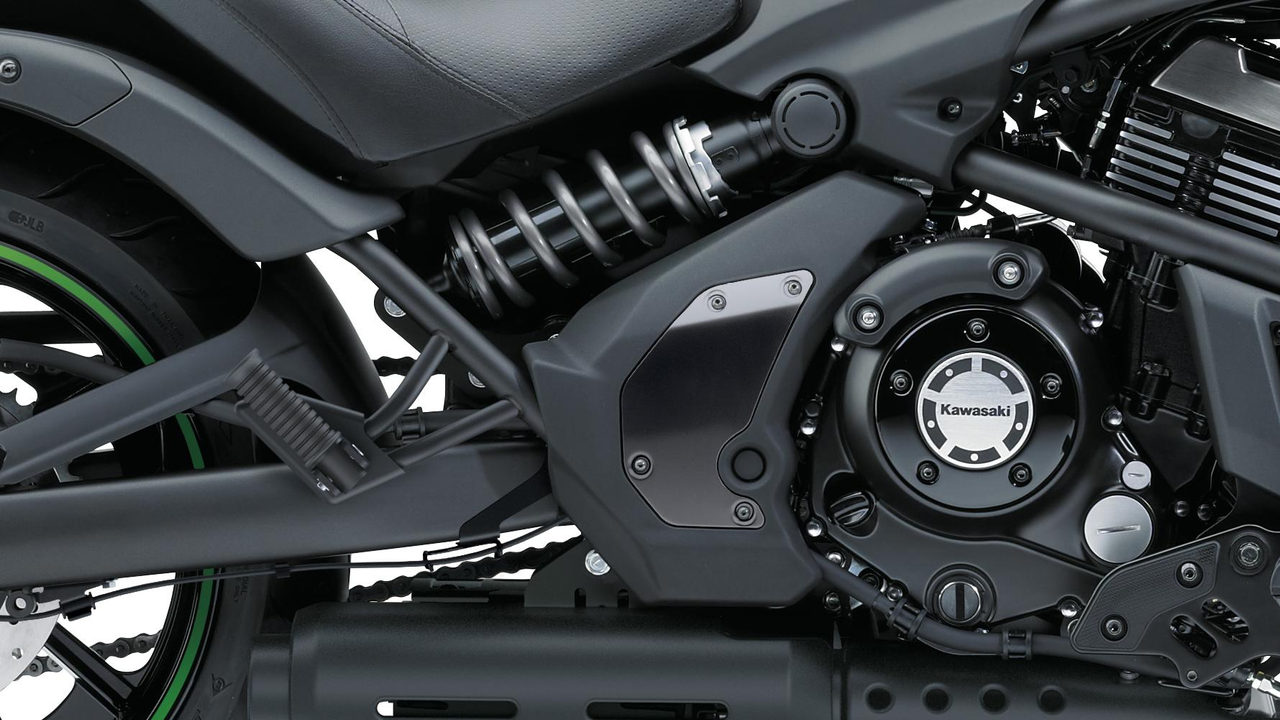

| Vedrustus taga | Nihutatud paigutusega monoamortisaator, hoovastikuga, 7-astmelise eelpingsuse reguleerimisega |
Inpage Navigation Section: Lisavarustus

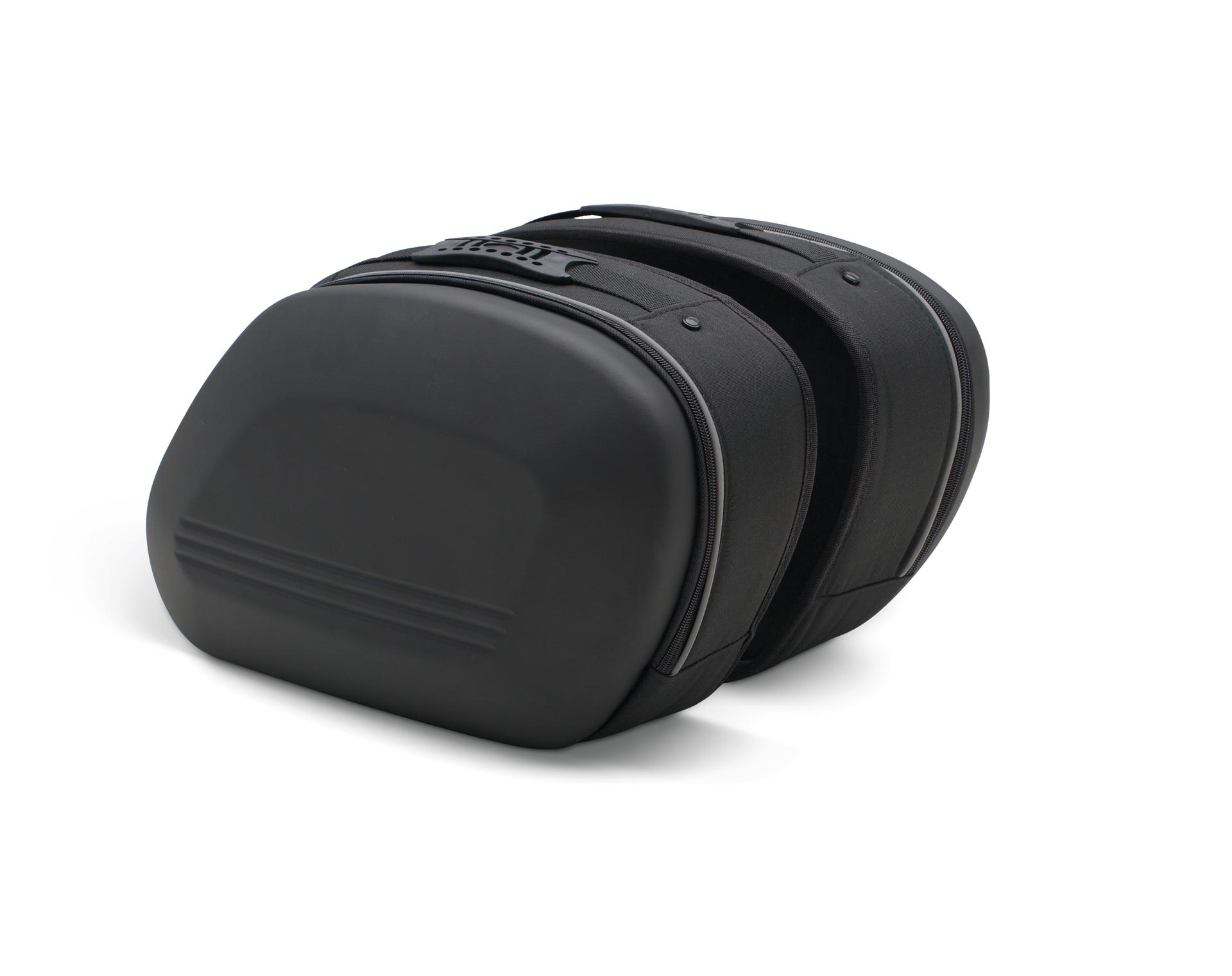

Keep your personal items secure on the road with saddlebags that complement the overall look of your bike.
This black leather saddlebag set has reinforcements to keep the shape in all riding conditions.
Quick release system inside the bag allows bags to be removed from the support easily without tools.
Durable water-resistant marine grade vinyl with genuine leather trim. An interior pocket keeps important papers and documents separate and protected.
A magnetic clasp closure on the lid makes accessing your goods convenient.
KQR mounting system allows for easy installation of KQR Saddlebags once installed.
Load 2.2kg per bag , Inner dimensions: H26 x L33 x D 13cm
The KQR Saddlebag Kit consists of 3 components:
Keep your personal items secure on the road with saddlebags that complement the overall look of your bike.
This black leather saddlebag set has reinforcements to keep the shape in all riding conditions.
Durable water-resistant marine grade vinyl with genuine leather trim. An interior pocket keeps important papers and documents separate and protected.
A magnetic clasp closure on the lid makes accessing your goods convenient.
(Load 2.2kg per bag , Inner dimensions: H26 x L33 x D 13cm)
The Fixed Saddlebag Kit consists of 2 components:
Large Windscreen Kit for improved comfort and wind protection.
This Winscreen Kit can be fitted to the front fork without removing fork legs.
Clear windshield with black finish brackets.
Height = 54cm (effective = 43cm), width = 45cm.
Complete Windscreen Kit consists of 3 components:

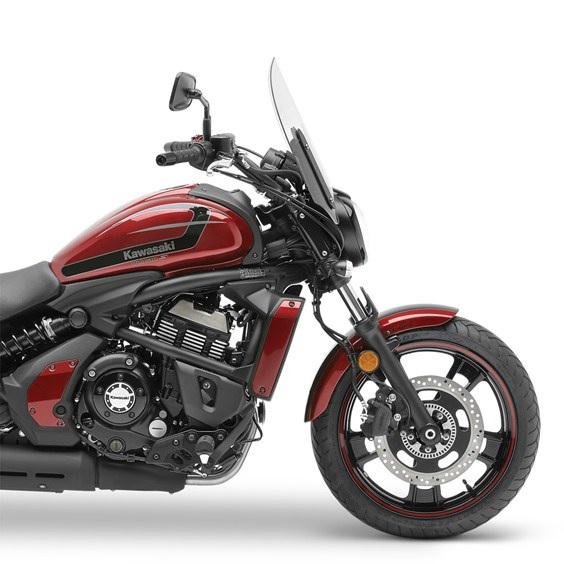

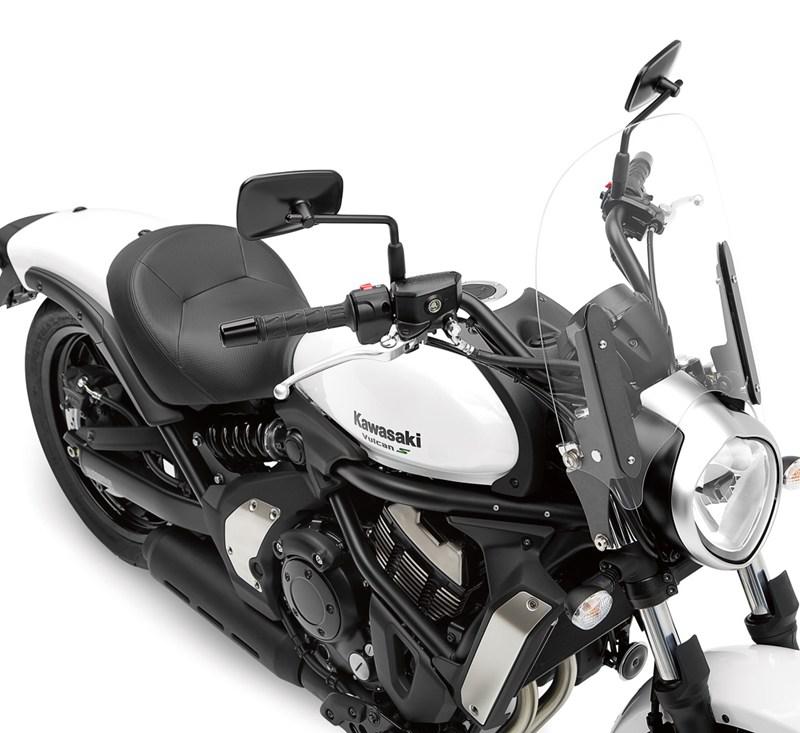

Medium Windscreen Kit for improved comfort and wind protection.
This Winscreen Kit can be fitted to the front fork without removing fork legs.
Clear windshield with black finish brackets.
Height = 47cm (effective = 36cm), width = 39cm.
Complete Windscreen Kit consists of 3 components:

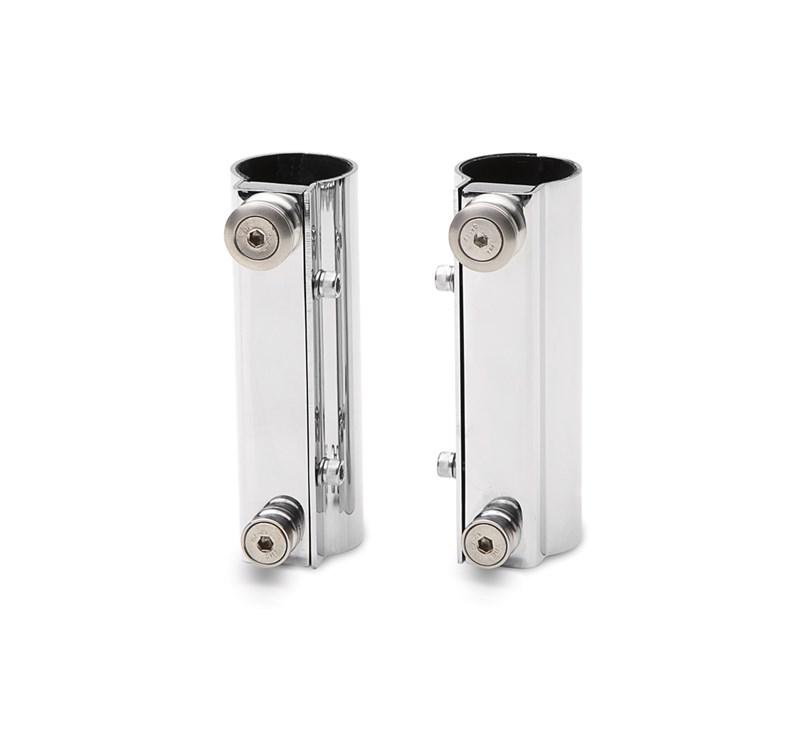

Large KQR (Quick Release) Windscreen Kit for improved comfort and wind protection.
This Windscreen Kit with lock allows for easy installation or removal of windshield once installed.
The Windscreen mounting system can be fitted to the front fork without removing fork legs.
Clear windshield with black finish brackets.
Height = 54cm (effective = 43cm), width = 45cm.
Complete Windscreen Kit consists of 3 components:
Medium KQR (Quick Release) Windscreen Kit for improved comfort and wind protection.
This Windscreen Kit with lock allows for easy installation or removal of windshield once installed.
The Windscreen mounting system can be fitted to the front fork without removing fork legs.
Clear windshield with black finish brackets.
Height = 47cm (effective = 36cm), width = 39cm.
Complete Windscreen Kit consists of 3 components:

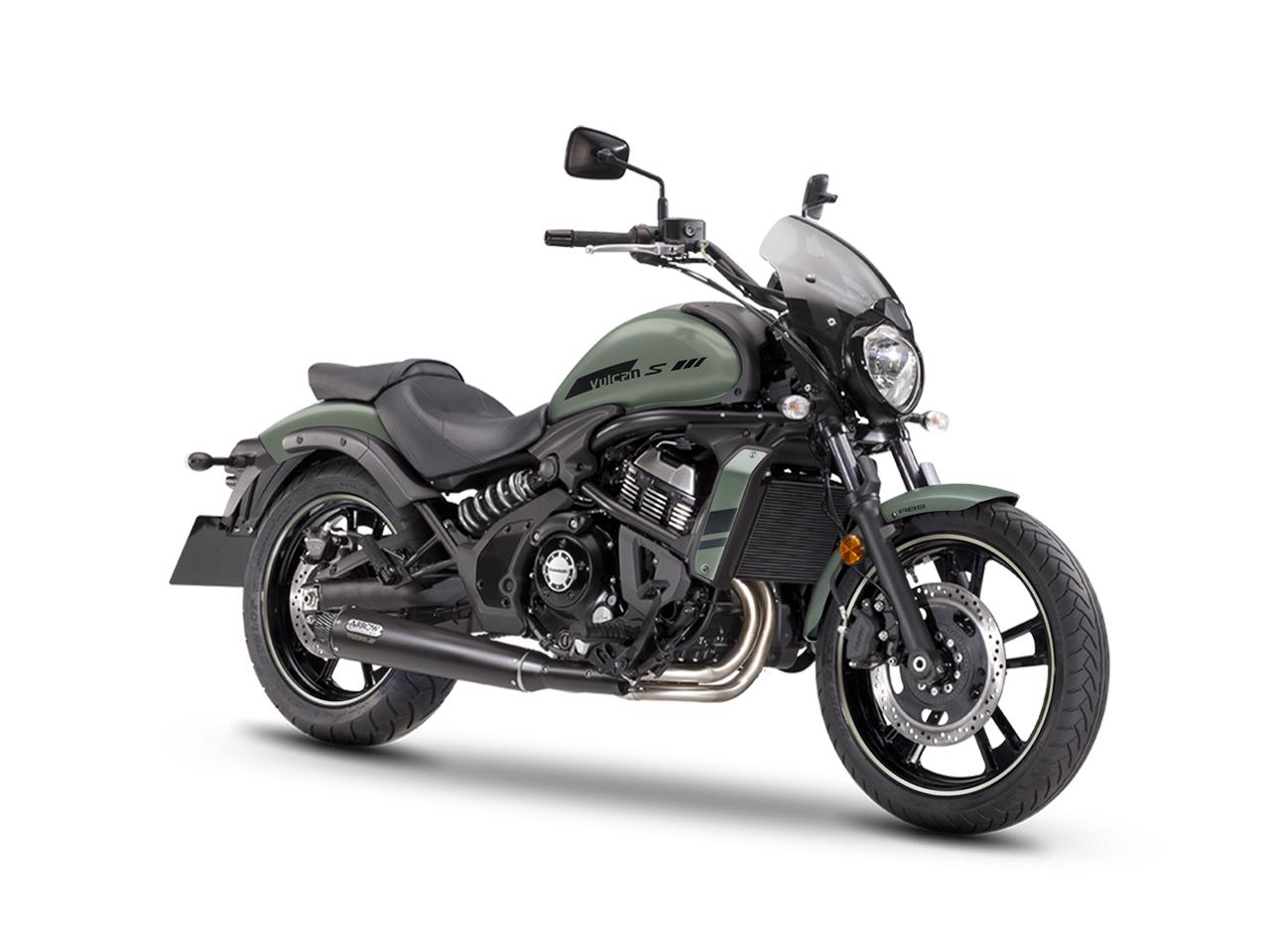

Arrow matt black exhaust system for Vulcan S. Full system made of stainless steel with catalyst and carbon endcap. This system is lighter compared to the stock exhaust system and gives a deep sporty sound.
The exhaust system is homologated according to EU regulations (emissions and noise) and has ECE type-approval. (Double oxygen sensor Euro5+)
Rugged, water-resistant nylon tank bag with reinforced foam body and lid to hold shape even when empty.
Expandable feature adds 7cm of storage capacity.
Clear window tray (13x10x4cm) for transponder, coins, etc. Dual outlet ports.
Reflective piping, front hook, magnetic skirt and rear strap. Non-scratch rubberized coating to protect paint finish.
Power/drink tube port at top of bag for direct access to electronic devices, hydration systems, etc. Including rain cover.
Volume 18-20L
L=43 W=28 H=15-22cm
Do not use on semi-gloss or matt/flat finish fuel tank surfaces
Durable black powder coated steel luggage rack mounts to your fixed passenger backrest.
Designed by Kawasaki to enhance your Vulcan S motorcycle styling while providing extra space for whatever you take with you on the road.
All required brackets and hardware included.
20cm (8") long and 23cm (9") wide.
The Passenger Luggage Rack installation requires 2 components:
ERGO-FIT™ Reduced Reach.
Suggested for riders shorter than 170cm.
A combination of adjustable factory components and accessories reduce the reach to handlebars and footpegs for the best possible fit.
ERGO-FIT™ Extended Reach.
Suggested for riders taller than 183cm.
Adjustable factory components and Ergo-Fit extended reach accessories give you comfort and confidence with more room to stretch out and enjoy your ride.
Kawasaki Quick Release Passenger Backrest
Padded backrest provides passenger comfort and features the KQR™ mounting system for installation or removal with minimal use of tools

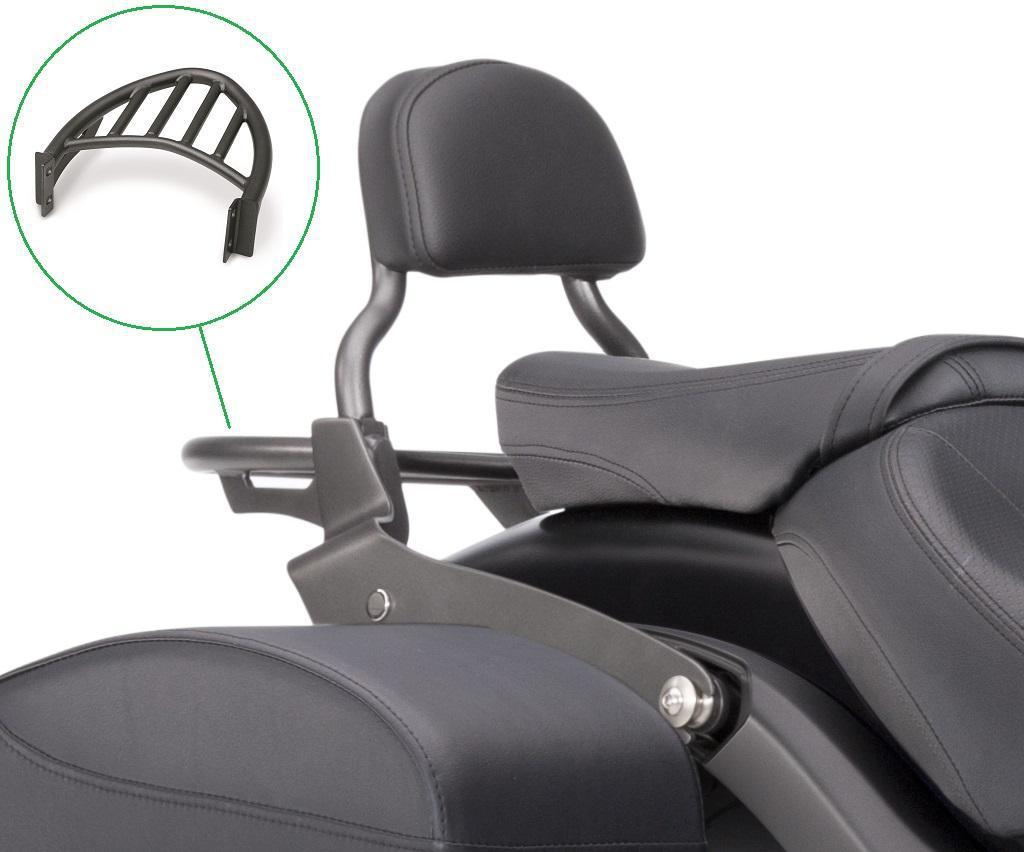

Luggage Rack Chrome (Option for KQR backrest)
Arrow matt black exhaust system for Vulcan S. Full system made of stainless steel with catalyst and carbon endcap. This system is lighter compared to the stock exhaust system and gives a deep sporty sound.
The exhaust system is homologated according to EU regulations (emissions and noise) and has ECE type-approval. (Double oxygen sensor Euro5+)

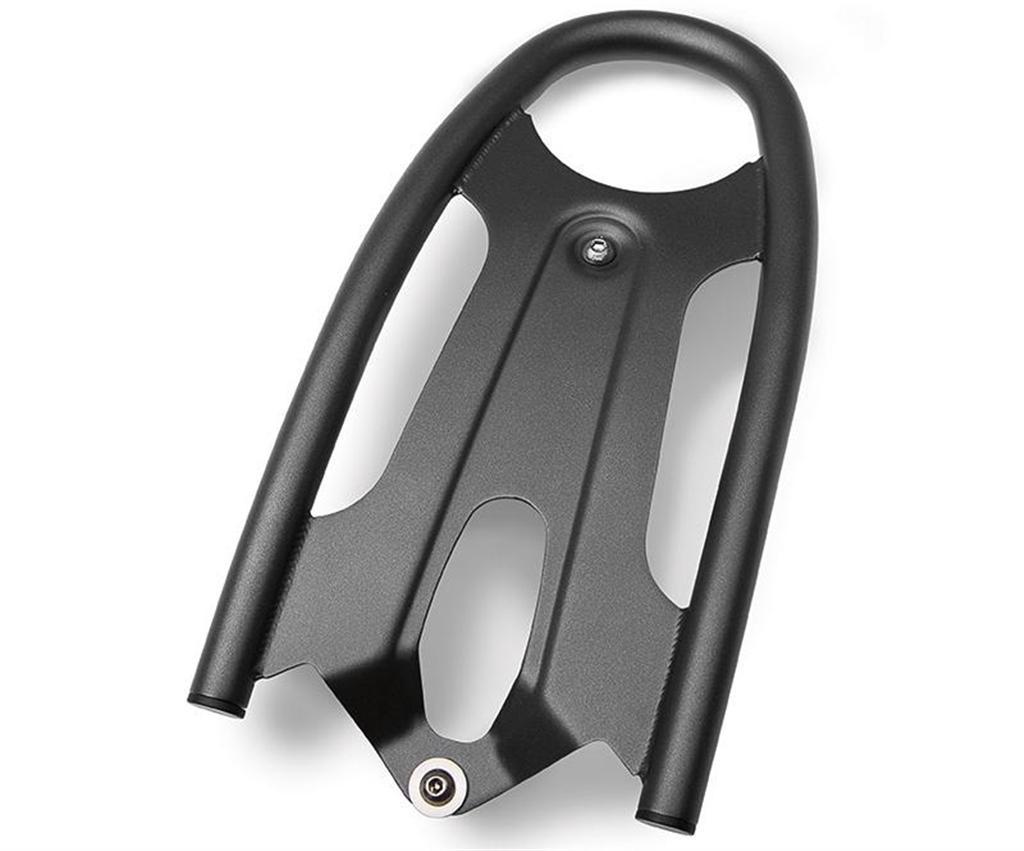

Durable powder coated steel luggage rack that replaces the passenger seat.
Designed to enhance usability and styling. Securely mount this luggage rack to your rear fender for extra cargo capacity. Developed by Kawasaki to integrate with the clean, modern lines of your Vulcan S
Length = 35cm, width = 20cm. Anthracite/Black or Chrome finish.
Important Notes: Not suitable for passenger seating.
Kawasaki Quick Release Passenger Backrest
Padded backrest provides passenger comfort and features the KQR™ mounting system for installation or removal with minimal use of tools

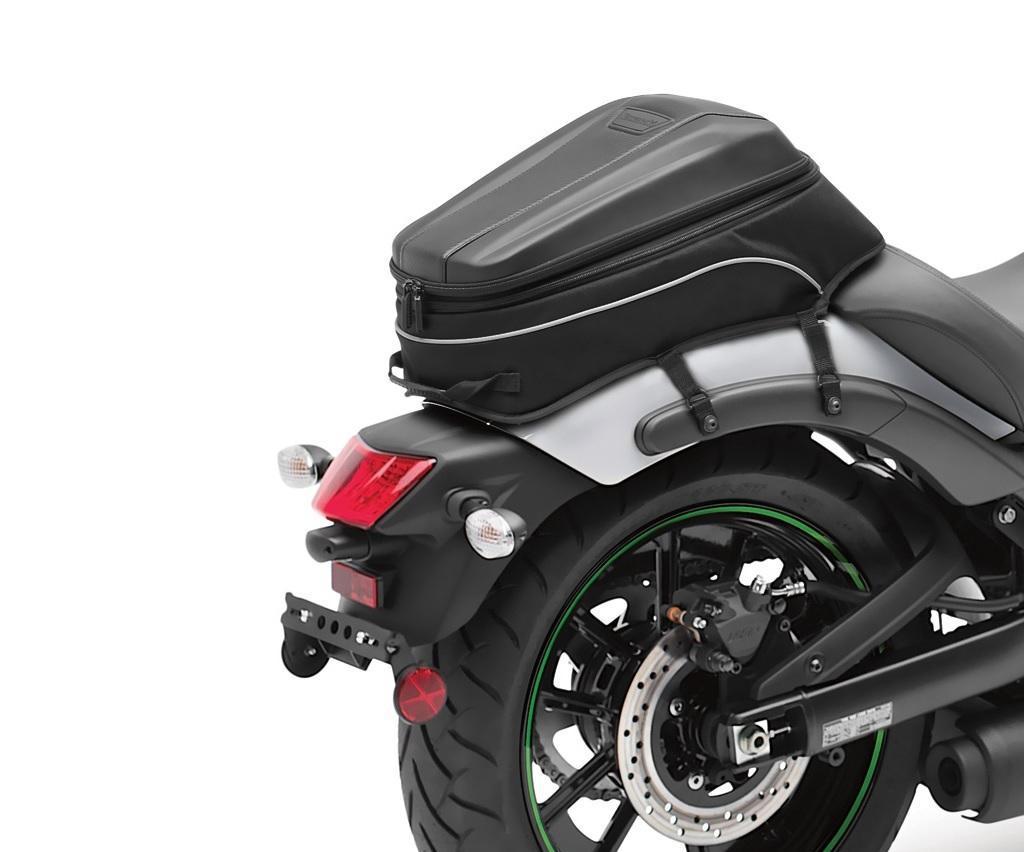

18-21L Rear Bag. Replaces the passenger seat.
Rugged, water-resistant nylon construction with reinforced foam body and lid.
Replaces rear seat and mounts to rear fender side bolts using custom quad side straps and steel center bracket with non-scratch rubberized coating to help protect paint finish
Expandable feature adds 7cm of vertical storage capacity (18-21 liters). Reflective piping for night visibility. Logo on lid.
L=45, W=25, H=20-28cm
Note: Do not use on satin, semi-gloss, or flat finish bodywork surfaces
The universal GPS package allows various installation options without using additional accessories. Navigation system can be mounted in the bag, or directly to the system without bag. Mounting on mirror or handlebar (22,28-25,4mm), or to other mounting points with ball M6 or M8 and rotatable RAM-Arm. Splash proof navigation bag size M protects your GPS from the weather.
Included:

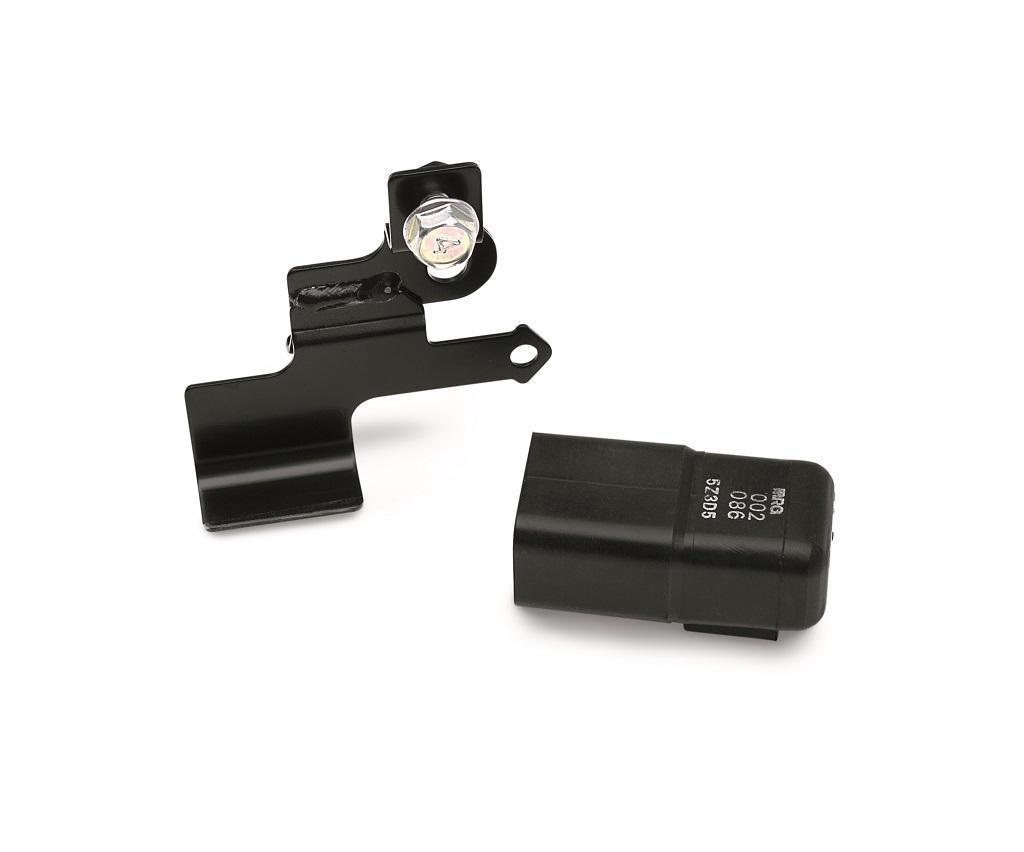

Relay kit for Vulcan S lightbar/sub lamp, 12V outlet, Gear position indicator or other electrical accessories.
Relay is needed only one time when multiple electrical accessories are fitted. (Only one Relay Kit required per Vulcan S)
Developed in conjuction wih SP Connect the kit consists of a Clutch Mount, Anti-vibration module and a Universal Phone Clamp. Suits mosts mobile phones; Simply pull out the crown, screw it tight, and then push the crown back in to lock your phone in place. While remaining fully operable, your phone can now be attached to or detached from the mount in seconds.
Discover your next adventure
Ride challenge level. Plan windy and hilly roads
Discover the world's best curated riding routes, exclusively
Updates via Wi-Fi®. No computer needed
Discover, personalize and enjoy stunning riding routes with MyDrive
Compatible with Siri and Google Now™
Smartphone messages read aloud, hands-free calling
Lifetime* Worldwide Maps, TomTom Traffic and Services
Double the processing speed and five times faster start-up
Whether you want to park your bike in a pitbox or in your garage, let your precious machine rest in style on this Kawasaki Garage Mat. The mat meets new FIM environmental codes and offers a high level of absorption and dust-control features.
