2024

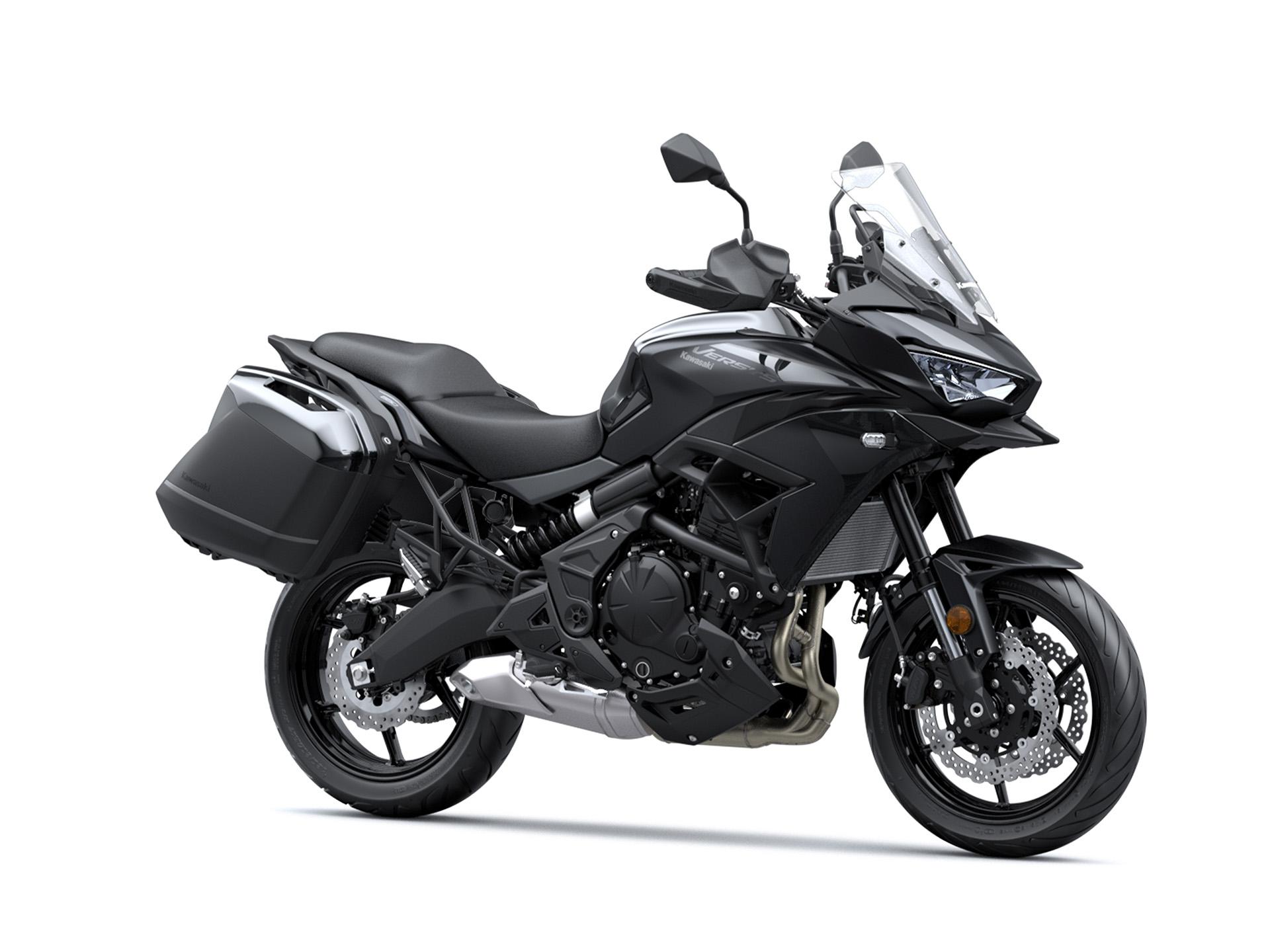

Versys 650 Tourer
Värvid
Eriväljaanded Versys 650
Erimudeli lisavarustus
- Omadused
- Tehnoloogiad
- Spetsifikatsioonid
Engine
| Mootori tüüp | Vedelikjahutusega, 4-taktiline paralleelasetusega kahesilindriline mootor |
|---|---|
| Surveaste | 10.8:1 |
| Klapisüsteem | DOHC, 8 valves |
| Läbimõõt x käik | 83.0 x 60.0 mm |
| Kubatuur | 649 cm³ |
| Kütusesüsteem | Fuel injection: 38 mm x 2 |
| Õlitus | Sundõlitus, poolkuiv õlivann |
| Käivitussüsteem | Elektriline |
| Süütesüsteem | Digitaalne |
Performance & Transmission
| Maksimaalne võimsus | 49.0 kW {67 PS} / 8,500 rpm |
|---|---|
| Maksimaalne pöördemoment | 61.0 N•m {6.2 kgf•m} / 7,000 rpm |
| CO2 emissioon | 107.0 g/km |
| Kütusekulu | 4.4 l/100km |
| CO2 emissioon 35 kW | 107.0 g/km |
| Kütusekulu 35 kW piiratuna | 4.5 l/100km |
| Ülekanne | 6 käiku |
| Sidur | Märg mitme kettaga |
| Esmane ülekandearv | 2.095 (88/42) |
| 1. käigu ülekandearv | 2.438 (39/16) |
| 2. käigu ülekandearv | 1.714 (36/21) |
| 3. käigu ülekandearv | 1.333 (32/24) |
| 4. käigu ülekandearv | 1.111 (30/27) |
| 5. käigu ülekandearv | 0.966 (28/29) |
| 6. käigu ülekandearv | 0.852 (23/27) |
| Lõppülekanne | Kinnine kett |
| Lõplik ülekandearv | 3.067 (46/15) |
Frame & Dimensions
| Raami tüüp | Rombikujuline toru, kõrge jäikusega teras |
|---|---|
| Rake | 25.0 ° |
| Kaugus pöördekeskmest | 108 mm |
| Amordikäik, esimene | 150 mm |
| Amordikäik, tagumine | 145 mm |
| Rehv ees | 120/70 ZR17 M/C (58W) |
| Rehv taga | 160/60 ZR17 M/C (69W) |
| P x L x K | 2,165 x 840 x 1,360 mm |
| Pöördenurk V/P | 35° / 35° |
| Teljevahe | 1,415 mm |
| Kõrgus maapinnast | 170 mm |
| Kütusepaagi maht | 21.0 liitrit |
| Istme kõrgus | 845 mm |
| Tühimass* | 219 kg |
| | *Curb mass includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). |
| Estimated dry weight** | 200 kg |
| | **Estimated Dry weight does not include all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). |
Brakes & Suspension
| Pidurid ees | Kahepoolsed poolpinnalähedased kroonlehtedega kettad |
|---|---|
| Esipiduri läbimõõt | Ø 300 mm |
| Esimese pidurisadula tüüp | Kahekolbilised |
| Pidurid taga | Ühe kroonlehega ketas |
| Tagapiduri läbimõõt | Ø 250 mm |
| Tagumise pidurisadula tüüp | Ühekolbiline |
| Vedrustus ees | - |
| Esivedrustuse diameeter | Ø 41 mm |
| Vedrustus taga | Nihutatud paigutusega monoamortisaator kaugreguleeritava eelpingsusega |
Lisavarustus
Rugged and aerodynamic dual LED Light Bar provides additional lighting for improved visibility.
- Integrates into the front headlight area
- Reflector Facing Technology (RFT) allows for optimum LED output while consuming far less power than conventional LED or halogen bulbs
- Steel bracket with high-impact plastic light housings
- Dealer installation recommended
Help protect your vehicle’s bodywork with a Frame Slider Set.
- Slide pads are made from polyurethane plastic for increased durability
- Chassis mounted brackets have been factory tested and approved for dispersion of impact during vehicle tip-overs
- Dealer installation recommended
- Note: Frame Sliders help protect your motorcycle, but will not prevent all types of damage
Rigid, water-resistant bag with compartments makes it easy to pack your cargo and drop into the locking Top Case. Once you have arrived at your destination, just grab your packed Inner Bag so you can leave the Top Case on your motorcycle and get going.
- Nylon construction with reflective piping
- Purchase as an optional component of the Top Case (42-47L), sold separately
Keep your personal items in 47 liters of lockable, waterproof storage; enough room for two full-face helmets. Requires Base Plate and model specific accessories.
- Kawasaki’s One Key System allows you to key the lock to your ignition key – refer to the letter on your key to determine if your need a Type A or Type B system.
- Kawasaki logos and factory-matched trim give your bike a customized look
- Constructed of molded ABS plastic
- Requires Carrier Plate, Color Panel, Deco Plate, and One Key System all sold separately
- Dimensions 432mm (17”) L x 584mm (23”) W x 305mm (12”) H
- Top Case load limit is 5kg (11 lbs.)
- On the Ninja 1000 SX, the Top Case (47L) is not compatible with panniers.
