2024

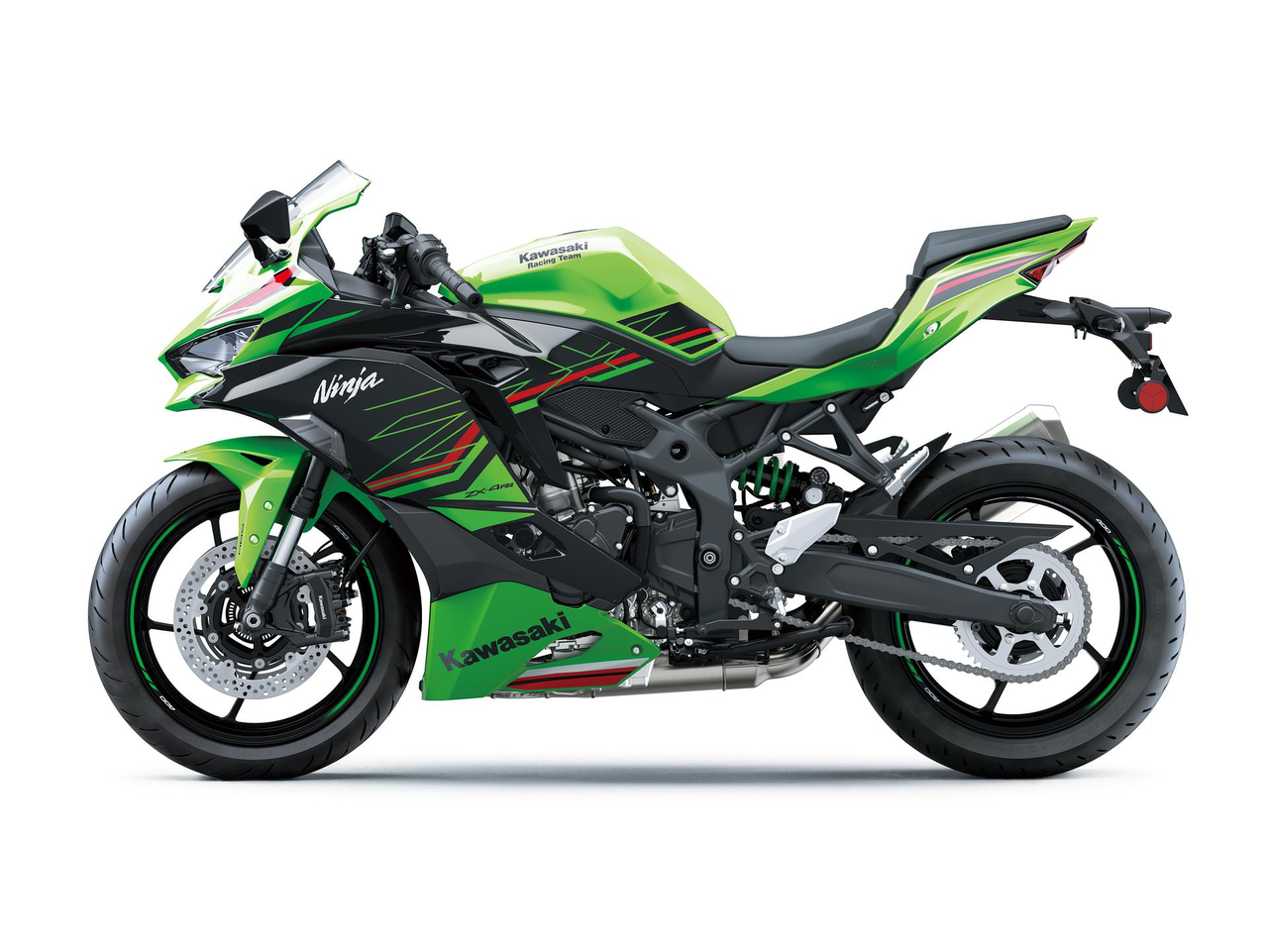

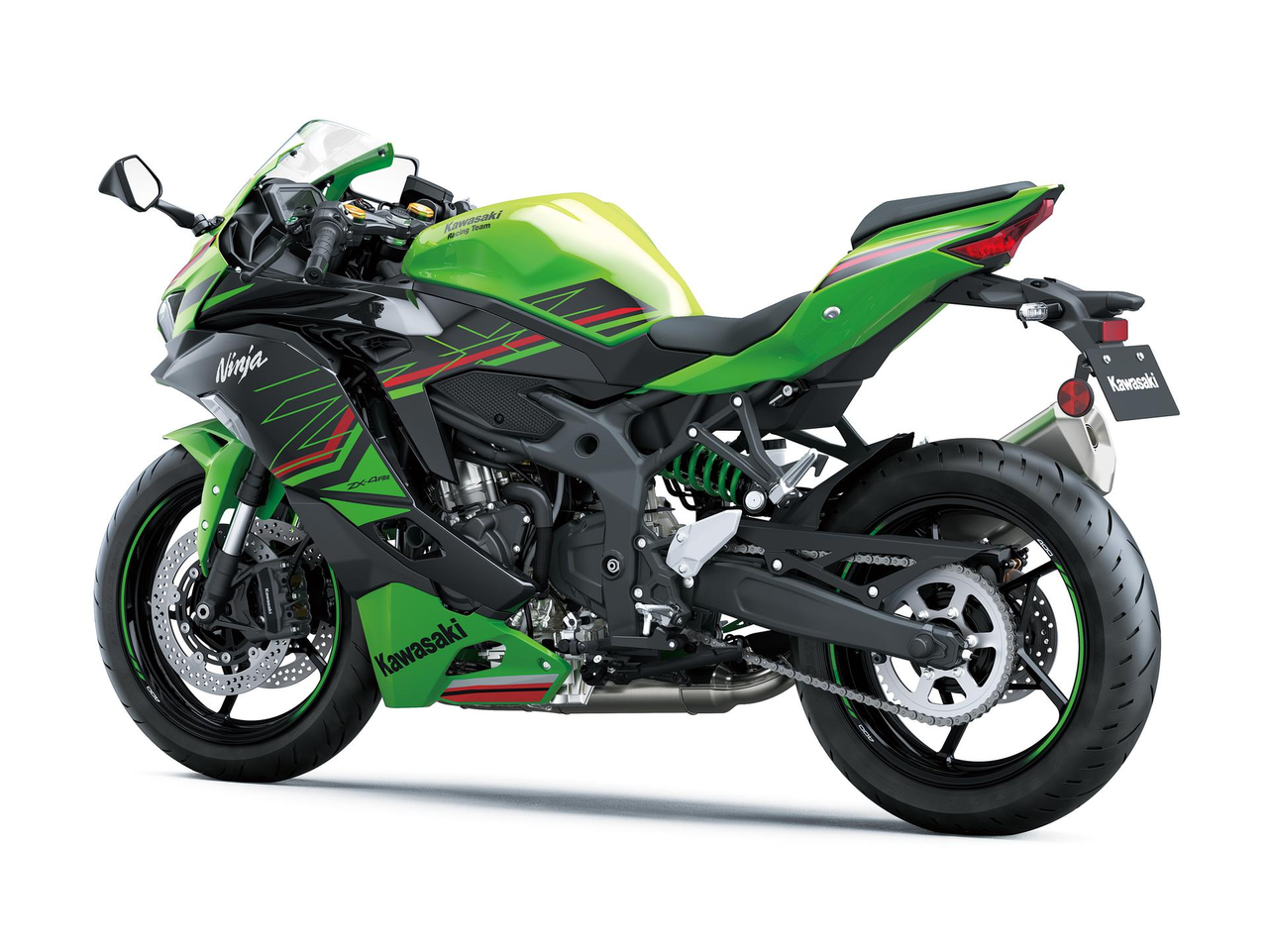

Ninja ZX-4RR
400cc sportmudelite kategoorias esitleb Kawasaki uue revolutsioonilise Supersport-mudeli.
Ninja ZX-4R on varustatud 400 cm3 rida 4 mootoriga, mis on omas klassis juhtiva võimsusega. Nii rajal kui ka tänaval, Ninja ZX-4R-i enneolematu võimsuse, põnevate
kõrgete pöörete ja terava ning kerge juhitavuse nautimine äratab sinus
kindlasti uinuva Supersportlase.
Värv
Eriväljaanded Ninja ZX-4RR
Ninja ZX-4RR
Show all
Show less

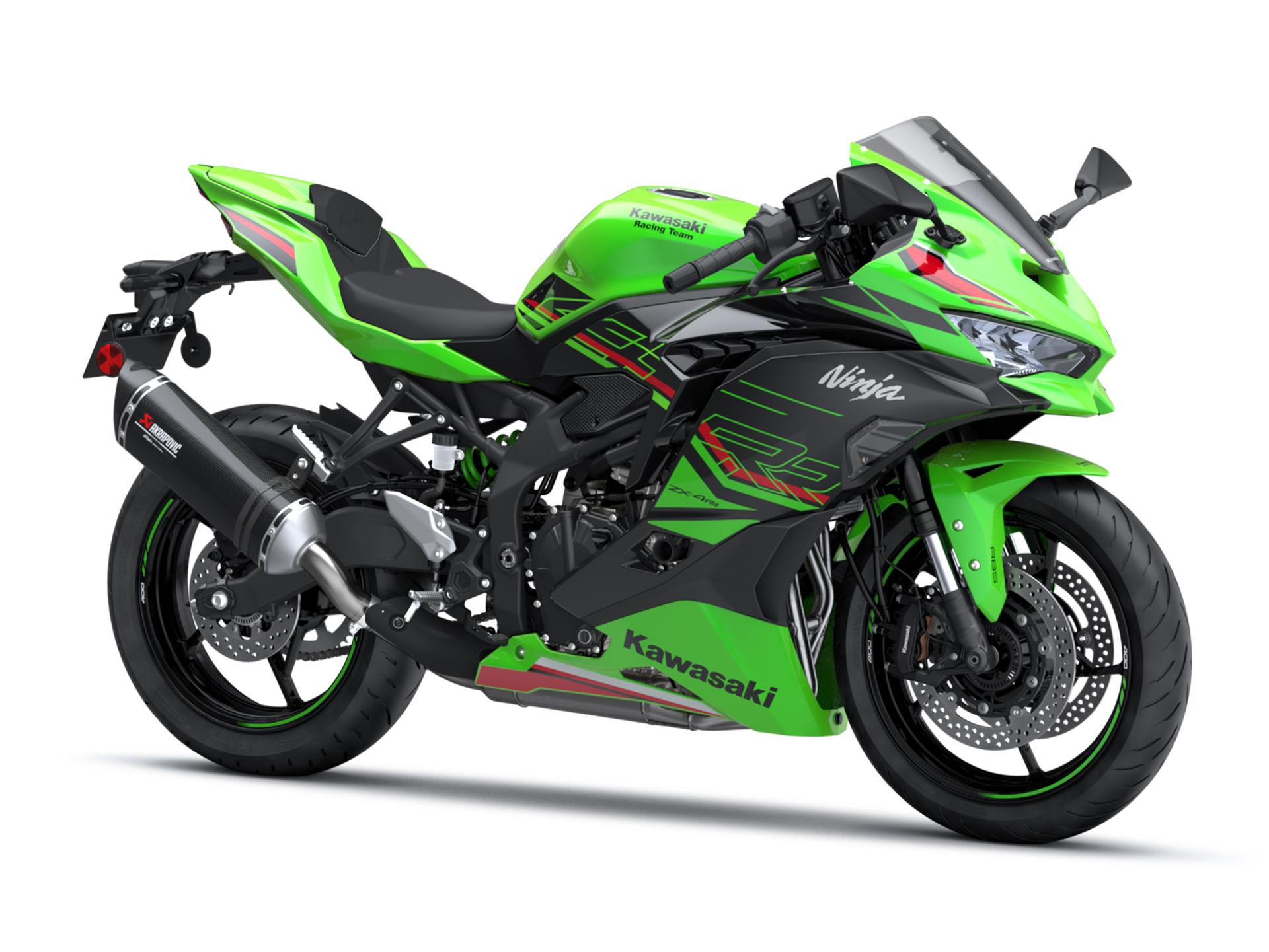

- Lime Green / Ebony
- Lime Green / Ebony
Inpage Navigation Section: Galerii
Inpage Navigation Section: Omadused ja spetsifikatsioonid
- Omadused
- Tehnoloogiad
- Spetsifikatsioonid
Engine
| Mootori tüüp | Vedelikjahutusega, 4-taktiline ülelaadimisega neljasilindriline |
|---|---|
| Surveaste | 12.3:1 |
| Klapisüsteem | DOHC, 16 valves |
| Läbimõõt x käik | 57.0 x 39.1 mm |
| Kubatuur | 399 cm³ |
| Kütusesüsteem | Fuel injection: 34 mm x 4 |
| Õlitus | Sundõlitus, õlivann |
| Käivitussüsteem | Elektriline |
| Süütesüsteem | Digitaalne |
Performance & Transmission
| Maksimaalne võimsus | 57.0 kW {77 PS} / 14,500 rpm |
|---|---|
| Maksimaalne võimsus RAM-õhuga | 58.7 kW {80 PS} / 14,500 rpm |
| Maksimaalne pöördemoment | 39.0 N•m {4.0 kgf•m} / 13,000 rpm |
| CO2 emissioon | 120.0 g/km |
| Kütusekulu | 5.1 l/100km |
| Ülekanne | 6 käiku |
| Sidur | Märg mitme kettaga |
| Esmane ülekandearv | 2.029 (69/34) |
| 1. käigu ülekandearv | 2.929 (41/14) |
| 2. käigu ülekandearv | 2.056 (37/18) |
| 3. käigu ülekandearv | 1.619 (34/21) |
| 4. käigu ülekandearv | 1.333 (32/24) |
| 5. käigu ülekandearv | 1.154 (30/26) |
| 6. käigu ülekandearv | 1.037 (28/27) |
| Lõppülekanne | Kinnine kett |
| Lõplik ülekandearv | 3.429 (48/14) |
Frame & Dimensions

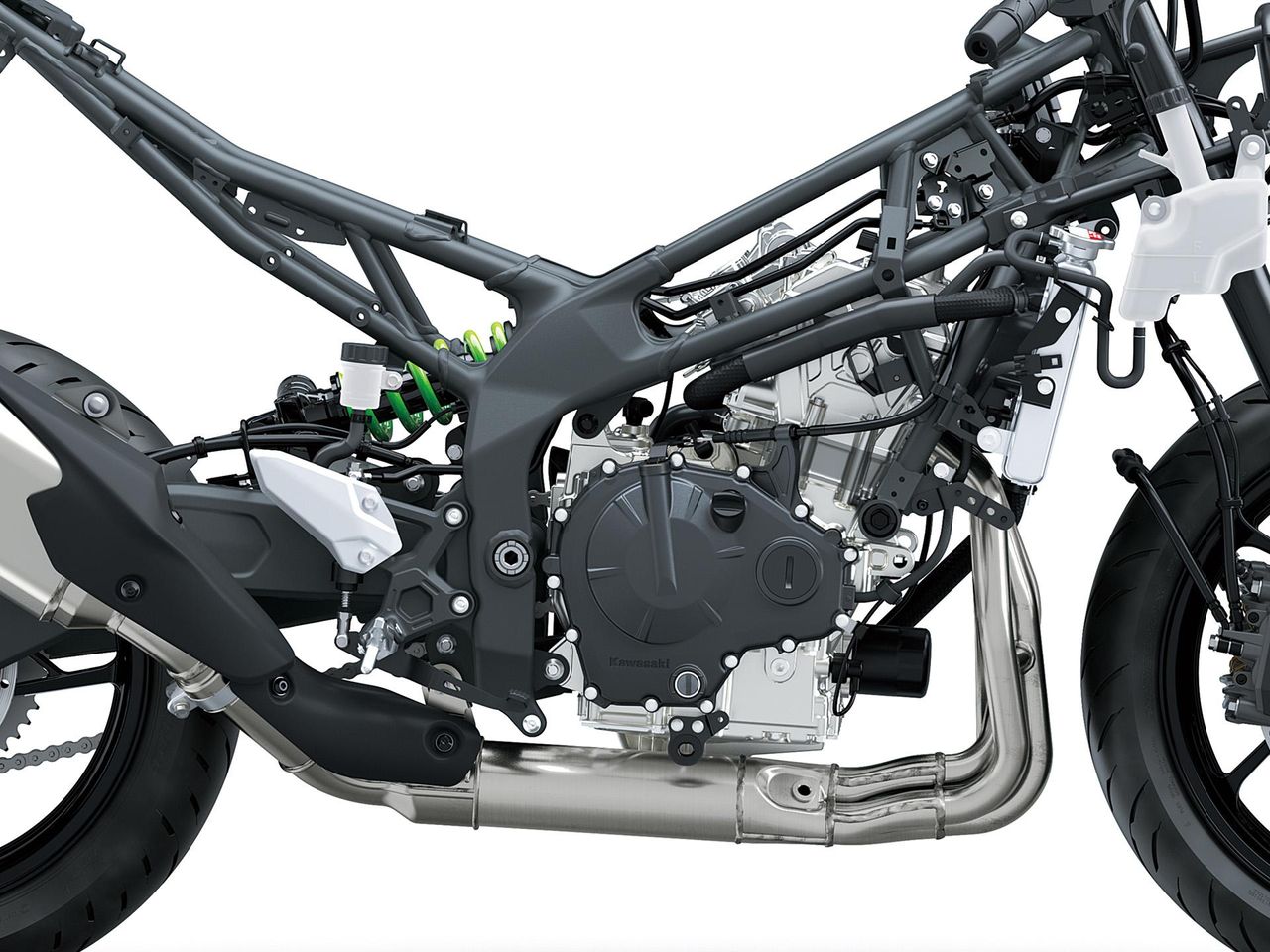

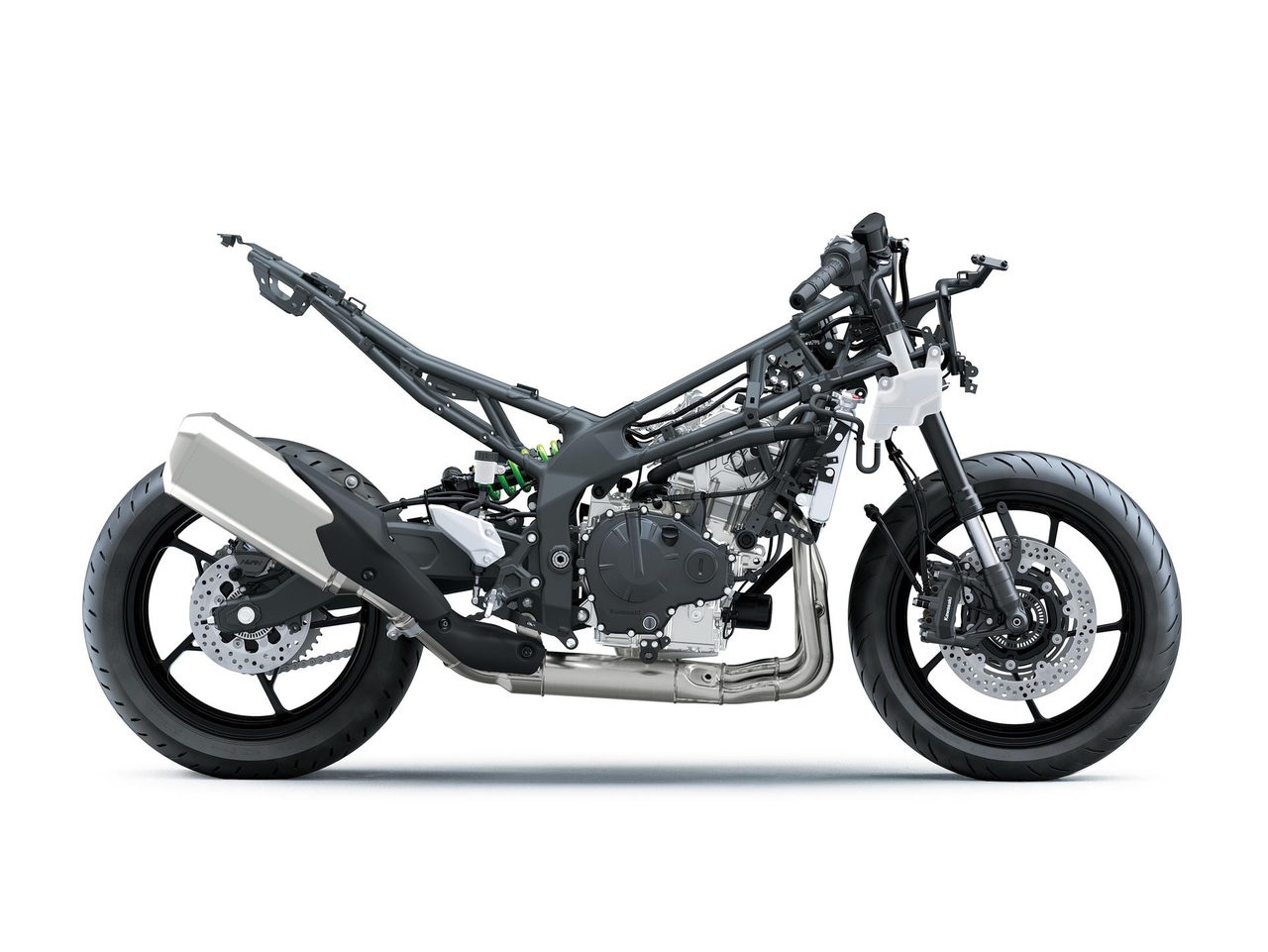

| Raami tüüp | Võrestik, kõrge jäikusega teras |
|---|---|
| Rake | 23.5 ° |
| Kaugus pöördekeskmest | 97 mm |
| Amordikäik, esimene | 120 mm |
| Amordikäik, tagumine | 124 mm |
| Rehv ees | 120/70 ZR17 M/C (58W) |
| Rehv taga | 160/60 ZR17 M/C (69W) |
| P x L x K | 1,990 x 765 x 1,110 mm |
| Pöördenurk V/P | 35° / 35° |
| Teljevahe | 1,380 mm |
| Kõrgus maapinnast | 135 mm |
| Kütusepaagi maht | 15.0 liitrit |
| Istme kõrgus | 800 mm |
| Tühimass* | 189 kg |
| | *Curb mass includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). |
| Estimated dry weight** | 175 kg |
| | **Estimated Dry weight does not include all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). |
Brakes & Suspension

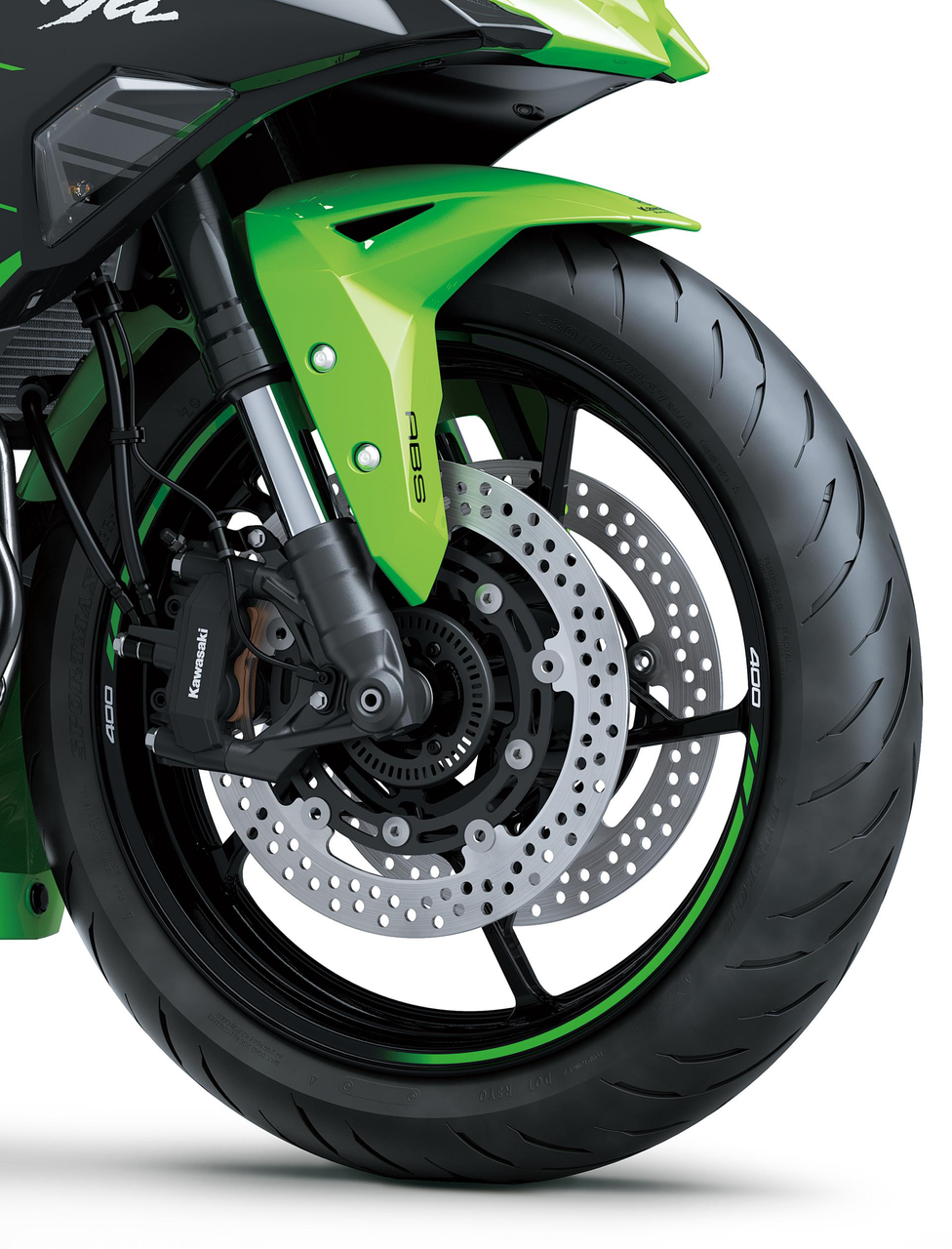

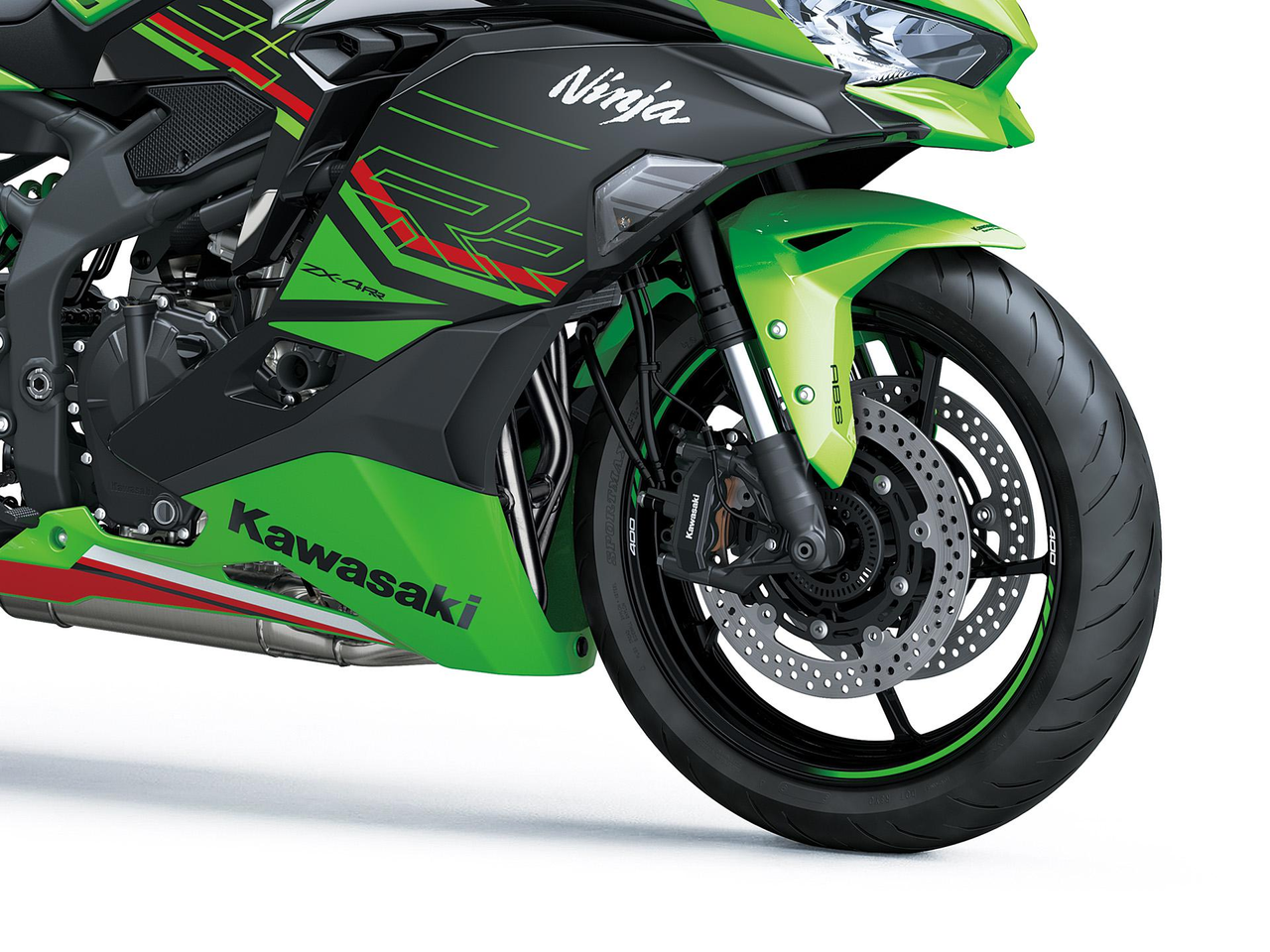

| Pidurid ees | Kahepoolsed poolpinnalised kettad |
|---|---|
| Esipiduri läbimõõt | Ø 290 mm |
| Esimese pidurisadula tüüp | Radiaalpaigaldusega, monoblokeeritud, vastassuunaline 4-kolbiline |
| Pidurid taga | Üksik ketas |
| Tagapiduri läbimõõt | Ø 220 mm |
| Tagumise pidurisadula tüüp | Ühekolbiline |
| Vedrustus ees | Inverted Separate Function fork (SFF-BP) with top-out springs |
| Esivedrustuse diameeter | Ø 37 mm |
| Vedrustus taga | - |
Inpage Navigation Section: Lisavarustus
Lisavarustus
Help protect your motorcycle from tip-over damage.
- High-density black ABS plastic Frame Sliders feature the Kawasaki logo and are mounted with factory-designed metal brackets
- Includes required brackets, hardware and installation instructions
- Frame Sliders help protect your motorcycle but will not prevent all types of damage
Akrapovič full racing exhaust system with stainless steel headers, collectors and link pipe and carbon fibre muffler. Contains 2 holes for front and rear oxygen sensors and adapters to allow fitment of original M12 small of aftermarket big oxygen sensors. Plug is supplied to seal of one of the holes. Compact carbon fiber muffler with slash-cut carbon endcap. Including removable stainless steel noise reduction insert. (± 105dB<->±107dB) Power +1.6 kW (2.1 hp) at 14500 rpm. Torque +2.2 Nm at 7000 rpm Weight -5.2 kg Should only be used in combination with fuel injection tuning to prevent engine damage and achieve maximum performance. (Not for street use) Ti EU5+ (double O2 sensor)
Made from strong Anti-tear Honeycomb ripstop fabric. Heat resistance till 120 degrees Celcius. Subtle branding.
100% Polyester. With multi usable (back)packing string bag.
Fits:
- Ninja 125
- Ninja 400
- Ninja 650
- Ninja 1000SX (without panniers)
- Ninja H2 SX/SE (without panniers)
- Ninja ZX-4R/RR
- Ninja ZX-6R
- Ninja ZX-10R/RR
An essential tool for motorcycle enthusiasts and mechanics alike. Designed to provide stability and convenience, this paddock stand allows easy access to the wheels, suspension, and other components.
This premium rear bike stand can be disassembled, making transportation a lot easier. The compact bike stand comes in a shop worthy carrying case with a built-in carrying handle. The stand is made of premium steel and has a green and black finish. The Kawasaki logo is laser cut in steel.
Optional are the forks to suit your preference;
- The Y-forks are to be used in combination with bobbins. (163JAY0021)
- The L-forks can be used to support the rear swing arms. (163JAY0022)
Whether you want to park your bike in a pitbox or in your garage, let your precious machine rest in style on this Kawasaki Garage Mat. The mat meets new FIM environmental codes and offers a high level of absorption and dust-control features.
- Size 100cm x 200cm
- Pile weight ± 300 gr/m²,
- Total height ± 5 mm,
- 30°C washable (no tumble-dry)
