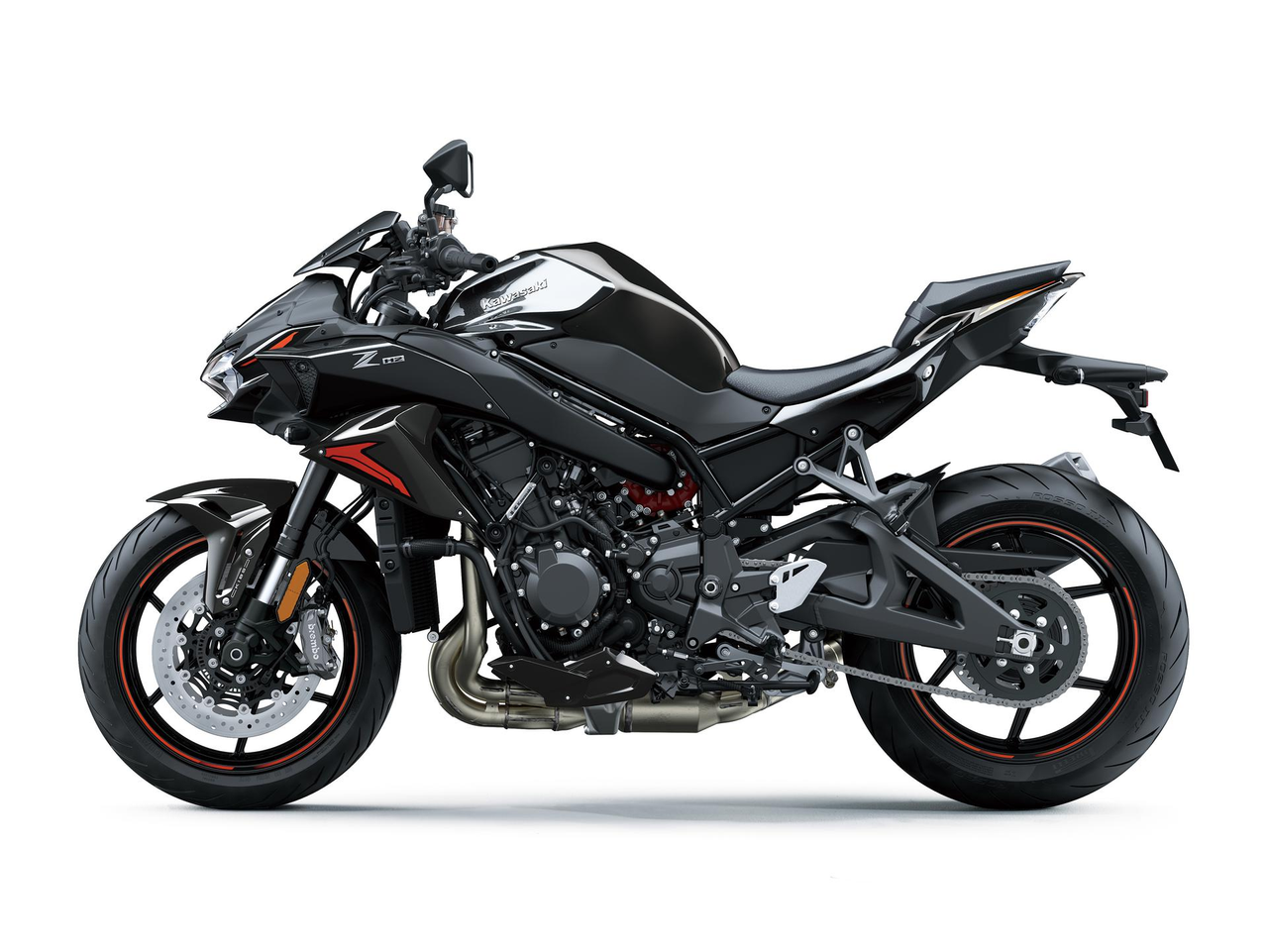

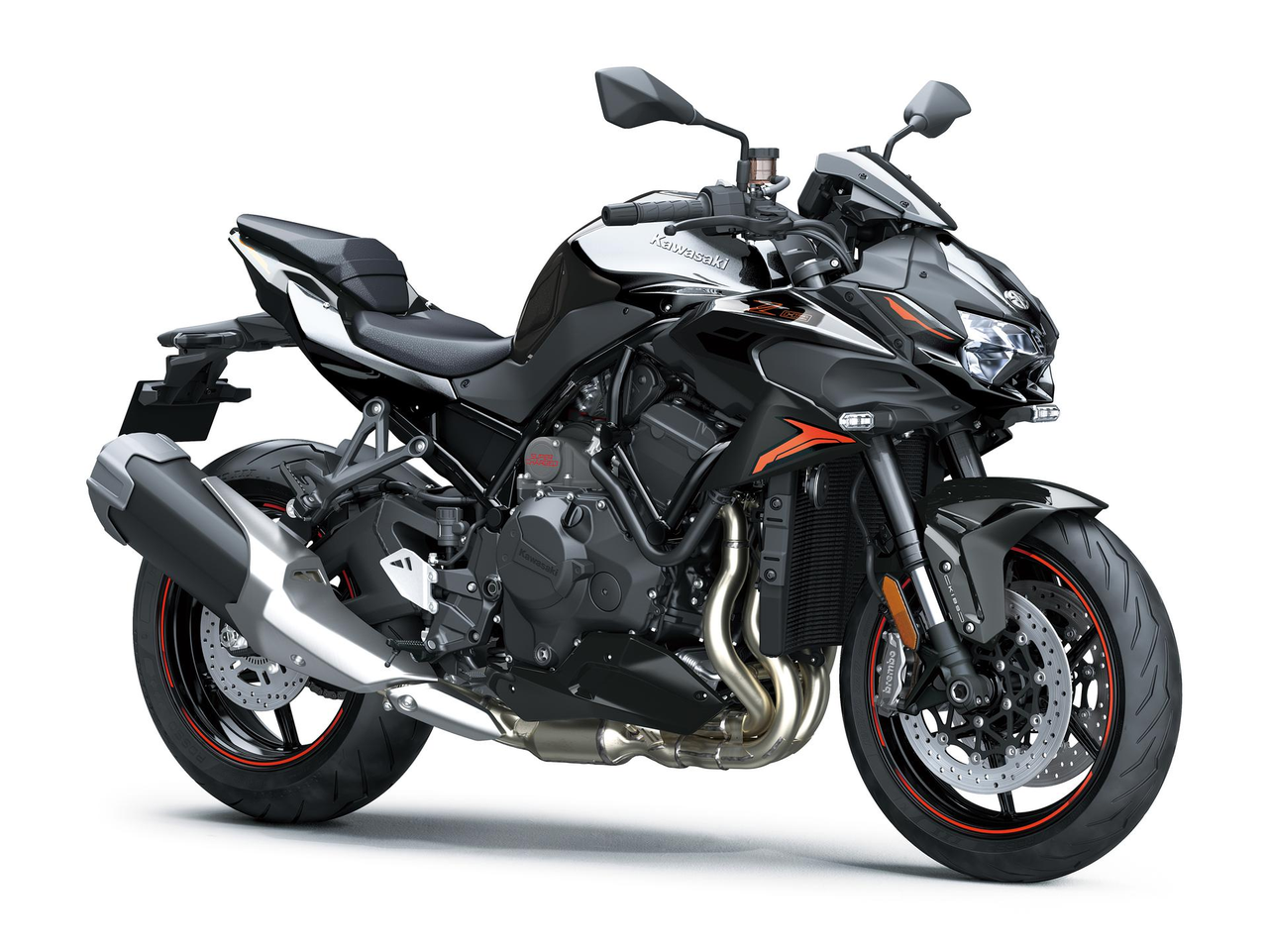

2024
Z H2
Ülelaetud geenius defineerib Supernaked klassi uuesti. Meie maailma tipptasemel liitrise mootori võimendamiseks kasutatakse võrratu Ninja H2 Supercharger-tehnoloogiat. Sugomi stiilist lausa kiirgab Kawasaki DNA-d.
SUPERCHARGE YOUR RIDING LIFE.
Värv
Eriväljaanded Z H2
Z H2
Show all
Show less

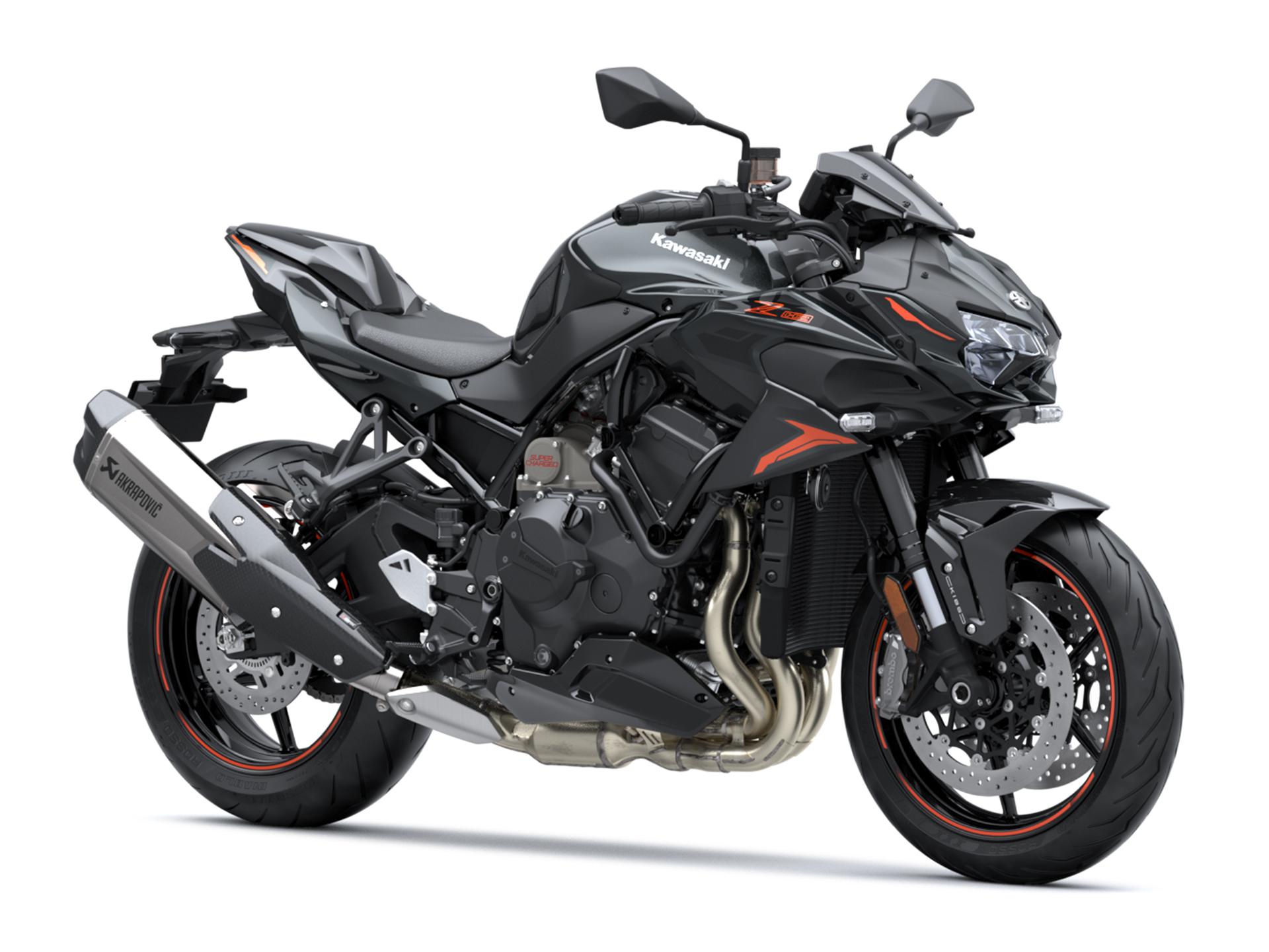

- Metallic Carbon Gray / Ebony
- Metallic Carbon Gray / Ebony
Inpage Navigation Section: Galerii
Inpage Navigation Section: Omadused ja spetsifikatsioonid
- Omadused
- Tehnoloogiad
- Spetsifikatsioonid

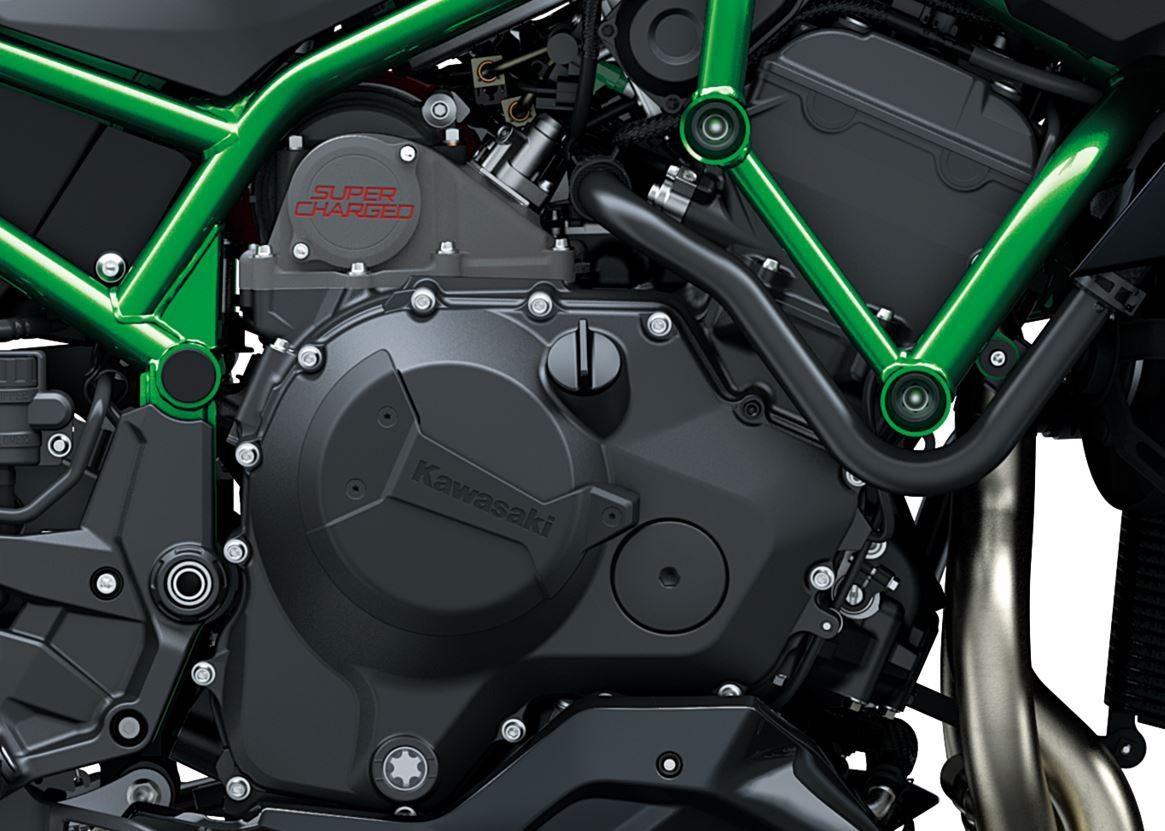

Engine
| Mootori tüüp | Vedelikjahutusega, 4-taktiline ülelaadimisega neljasilindriline ridamootor |
|---|---|
| Surveaste | 11.2:1 |
| Klapisüsteem | DOHC, 16 valves |
| Läbimõõt x käik | 76.0 x 55.0 mm |
| Kubatuur | 998 cm³ |
| Kütusesüsteem | Fuel injection: 40 mm x 4 |
| Õlitus | Sundõlitus, õlivann |
| Käivitussüsteem | Elektriline |
| Süütesüsteem | Digitaalne |
Performance & Transmission
| Maksimaalne võimsus | 147.1 kW {200 PS} / 11,000 rpm |
|---|---|
| Maksimaalne pöördemoment | 137.0 N•m {14.0 kgf•m} / 8,500 rpm |
| CO2 emissioon | 134.0 g/km |
| Kütusekulu | 6.0 l/100km |
| Ülekanne | 6 käiku |
| Sidur | Märg mitme kettaga |
| Esmane ülekandearv | 1.480 (74/50) |
| 1. käigu ülekandearv | 3.077 (40/13) |
| 2. käigu ülekandearv | 2.471 (42/17) |
| 3. käigu ülekandearv | 2.045 (45/22) |
| 4. käigu ülekandearv | 1.727 (38/22) |
| 5. käigu ülekandearv | 1.524 (32/21) |
| 6. käigu ülekandearv | 1.348 (31/23) |
| Lõppülekanne | Kinnine kett |
| Lõplik ülekandearv | 2.556 (46/18) |
Frame & Dimensions

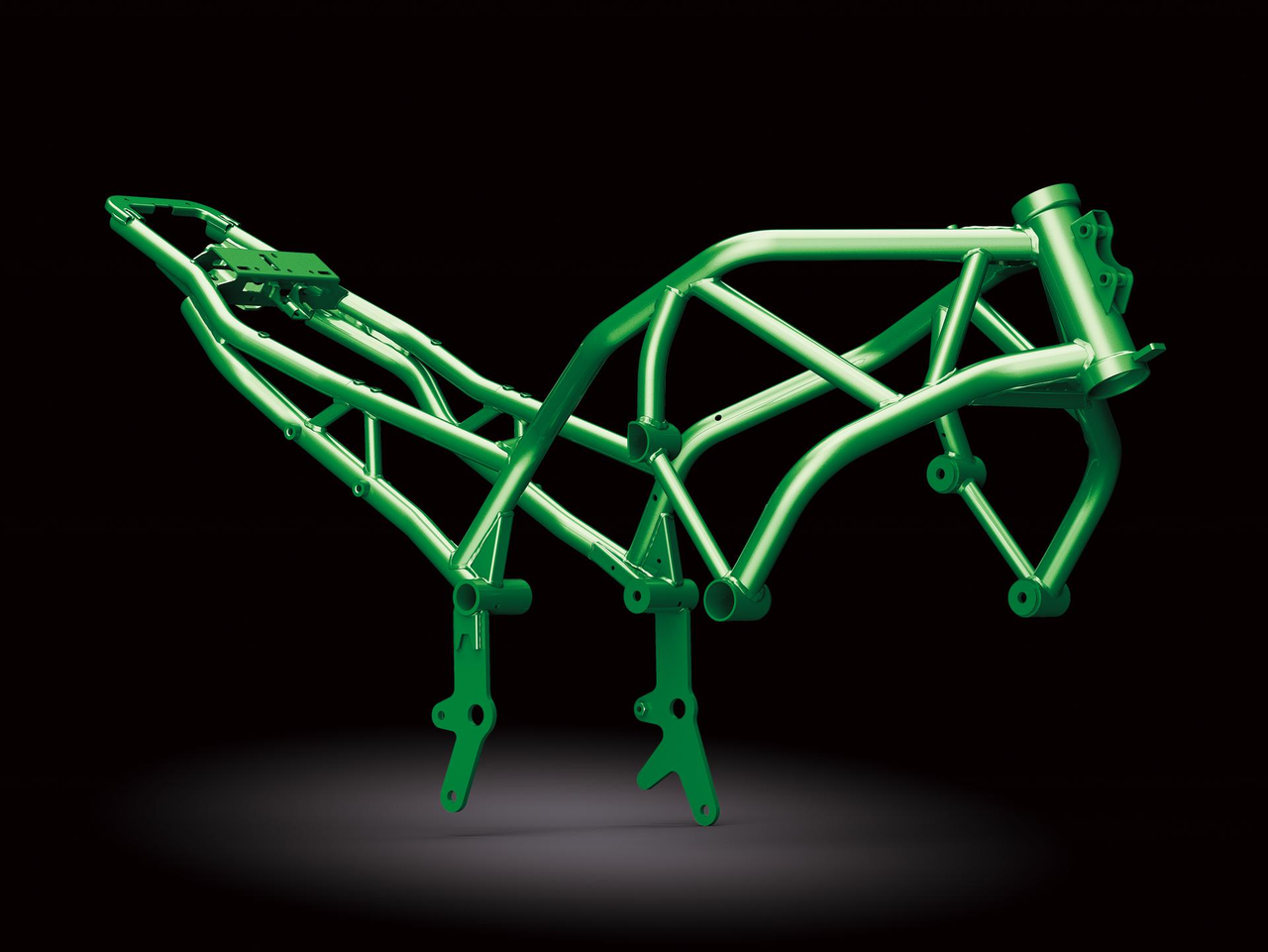

| Raami tüüp | Võrestik, kõrge jäikusega teras |
|---|---|
| Rake | 24.9 ° |
| Kaugus pöördekeskmest | 104 mm |
| Amordikäik, esimene | 120 mm |
| Amordikäik, tagumine | 134 mm |
| Rehv ees | 120/70 ZR17 M/C (58W) |
| Rehv taga | 190/55 ZR17 M/C (75W) |
| P x L x K | 2,085 x 810 x 1,130 mm |
| Pöördenurk V/P | 29° / 29° |
| Teljevahe | 1,455 mm |
| Kõrgus maapinnast | 140 mm |
| Kütusepaagi maht | 19.0 liitrit |
| Istme kõrgus | 830 mm |
| Tühimass* | 239 kg |
| | *Curb mass includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). |
| Estimated dry weight** | 219 kg |
| | **Estimated Dry weight does not include all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). |
Brakes & Suspension

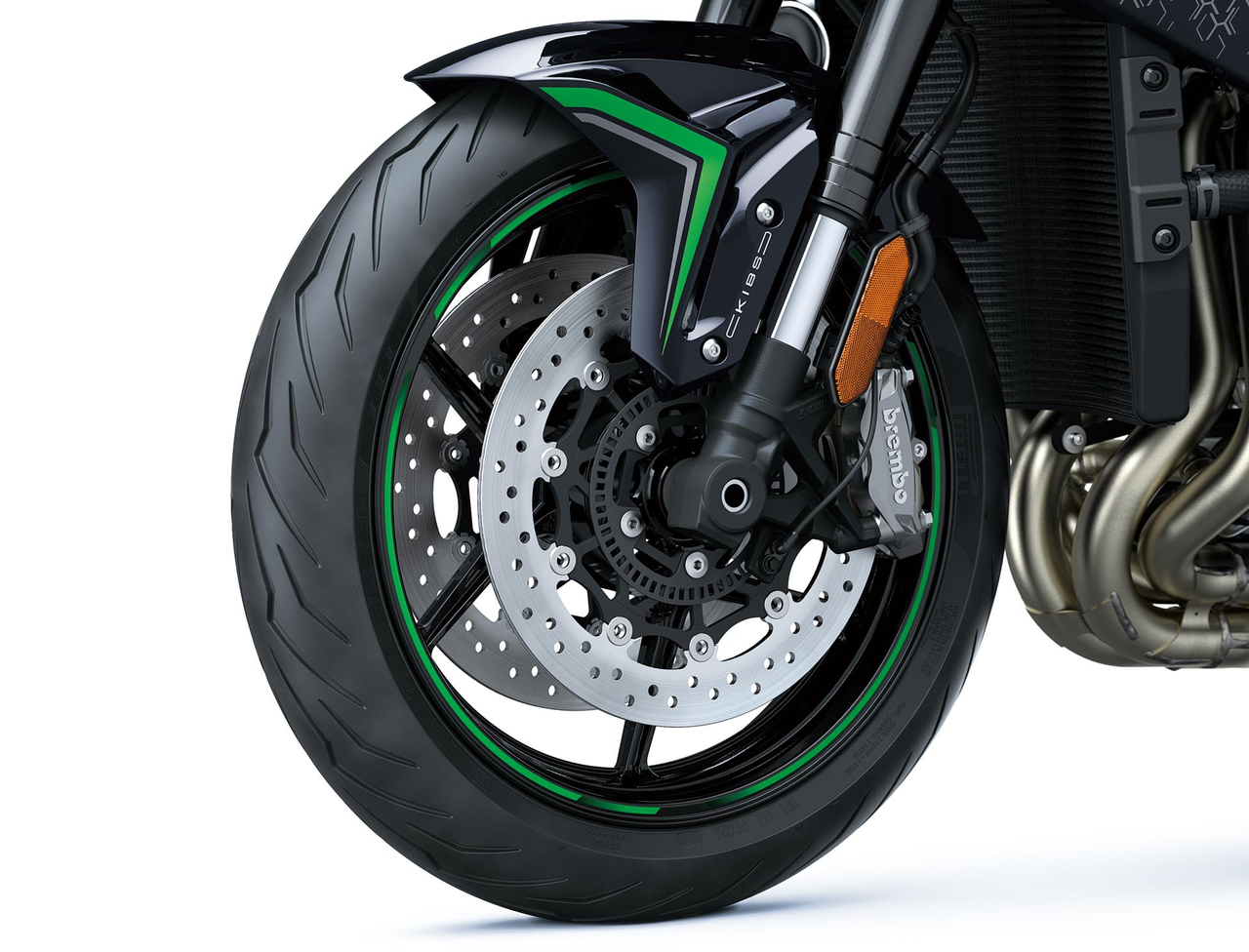

| Pidurid ees | Kahepoolsed poolpinnalised kettad |
|---|---|
| Esipiduri läbimõõt | Ø 320 mm |
| Esimese pidurisadula tüüp | Brembo radiaalpaigaldusega, M4.32 monoblokk, vastassuunaline 4-kolbiline |
| Pidurid taga | Üksik ketas |
| Tagapiduri läbimõõt | Ø 260 mm |
| Tagumise pidurisadula tüüp | Ühekolbiline |
| Vedrustus ees | Inverted Separate Function fork (SFF-BP) with adjustable compression and rebound damping, and spring preload adjustability |
| Vedrustus taga | - |
Inpage Navigation Section: Lisavarustus
Lisavarustus
Give your Kawasaki bike a more sporty look and sound with this Akrapovič slip-on exhaust. The lightweight titanium slip-on muffler features a laser marked logo, carbon end cap and carbon heat shield. This exhaust with catalyst is homologated and has ECE type-approval (Euro 5+). Suited for Z H2 Models from on Model Year 2023.
Help keep your hands warm on the road with a grip heater system ergonomically designed to minimize added bulk to the grip.
- Adjust to low, medium, or high settings with the touch of a button
- Indicator light on the left grip improves setting visibility
- Grip set with all required wiring, brackets and hardware
- Dealer installation recommended

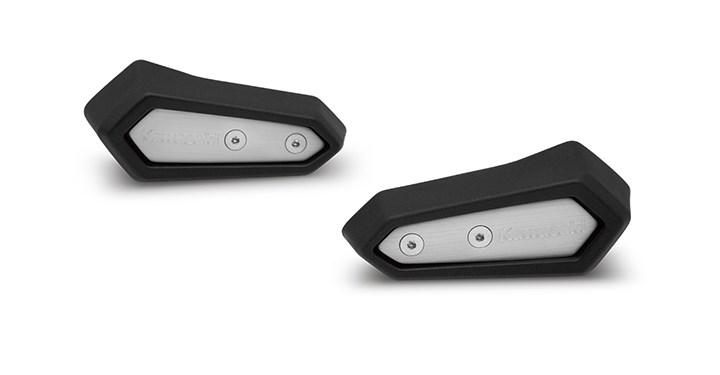

Help protect your motorcycle from tip-over damage.
- High-density black ABS plastic Frame Sliders feature the Kawasaki logo and are mounted with factory-designed metal brackets
- Includes required brackets, hardware and installation instructions
- Frame Sliders help protect your motorcycle but will not prevent all types of damage
Made to fit and complement the Z H2 motorcycle, this seat enhances riding comfort for taller passengers.
- The ERGO-FIT® Extended Reach Passenger Seat is 10mm taller than stock and comes fully assembled
- Utilizes factory seat base and components for a factory fit
- PVC foam with vinyl cover
- Includes all parts needed to replace the stock seat
Semi rigid Polyester tank bag specially designed for the fuel tank shape.
- Black/Grey tank bag with reflective piping and Kawasaki logo
- Inside has partitions to prevent goods moving around
- Including shoulder belt and rain cover with transparent window.
- L350mm, W223mm,H150mm
- Load Weight Max 2kg
- Load Capacity approximate 4 Litre
- Matching bracket is required for fitment
Heavy Duty Outdoor Cover - Medium
Strong durable multi layered fabric with taped seams. Heat resistant honeycomb till 120 degrees Celcius. Subtle Branding.
Two front and two rear holes for lock. Covered ventilation openings for better breathing. Window with cover to hide or show license plate.
100% Polyester. With multi usable packing backpack.
Whether you want to park your bike in a pitbox or in your garage, let your precious machine rest in style on this Kawasaki Garage Mat. The mat meets new FIM environmental codes and offers a high level of absorption and dust-control features.
- Size 100cm x 200cm
- Pile weight ± 300 gr/m²,
- Total height ± 5 mm,
- 30°C washable (no tumble-dry)
An essential tool for motorcycle enthusiasts and mechanics alike. Designed to provide stability and convenience, this paddock stand allows easy access to the wheels, suspension, and other components.
This premium rear bike stand can be disassembled, making transportation a lot easier. The compact bike stand comes in a shop worthy carrying case with a built-in carrying handle. The stand is made of premium steel and has a green and black finish. The Kawasaki logo is laser cut in steel.
Optional are the forks to suit your preference;
- The Y-forks are to be used in combination with bobbins. (163JAY0021)
- The L-forks can be used to support the rear swing arms. (163JAY0022)
Discover your next adventure
Ride challenge level. Plan windy and hilly roads
Discover the world's best curated riding routes, exclusively
Updates via Wi-Fi®. No computer needed
Discover, personalize and enjoy stunning riding routes with MyDrive
Compatible with Siri and Google Now™
Smartphone messages read aloud, hands-free calling
Lifetime* Worldwide Maps, TomTom Traffic and Services
Double the processing speed and five times faster start-up

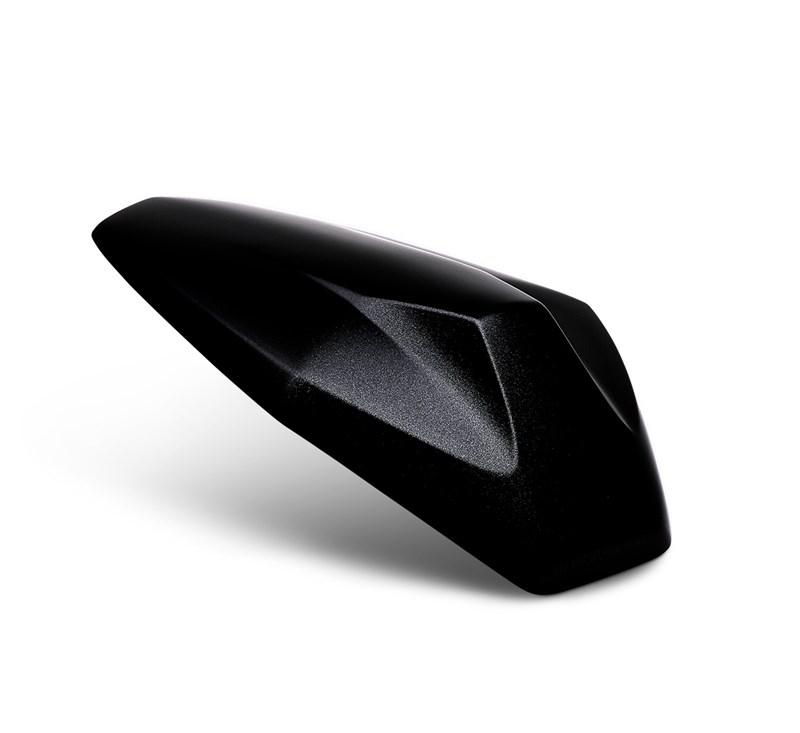

- Single Seat Cover, Ebony (H8)
